> 1HP LEESON 1725RPM 56H DP 3PH MOTOR 115827.00
1HP LEESON 1725RPM 56H DP 3PH MOTOR 115827.00
LEESON 115827.00 has been superseded by E115827.00
| Catalog Number: | 115827.00 |
| Model Number: | C6T17DB77B |
| Description: | 1HP,1725RPM,56H,DP,3PH,60HZ |
| Ship Weight: | 27 lbs. |
| Volts | 208-230 | Volts | 460 | Volts | |
| F.L. Amps | 4.2 | F.L. Amps | 2.1 | F.L. Amps | |
| S. F Amps | 4.5 | S. F Amps | 2.25 | S. F Amps | |
| RPM | 1800 | Hertz | 60 | ||
| HP | 1 | Duty | CONTINUOUS | TYPE | TD |
| KW | 0.75 | Model Number | C6T17DB77B | ||
| Frame | 56H | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | K |
| Insul Class | B | Protection | NOT | Therm.Prot. | |
| Eff 100% | 78.5 | Eff 75% | PF | 58 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6203 |
| CC Number | NONE | CE | No | Bearing PE | 6205 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 27 LB | Enclosure | DP | Lubrication | POLYREX EM |
| Nameplate | 993500 | Mounting | RIGID | Rotation | REV |

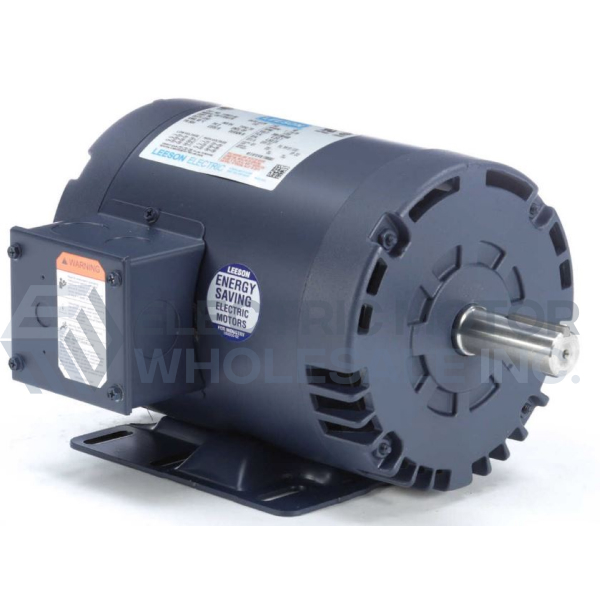

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 115827.00
Stock # 115827
