1.5HP LEESON 1140RPM 56HY DP 3PH MOTOR 115779

LEESON Catalog Number:  115779.00
Description:  1.5HP,1140RPM,56HY,DP,3PH,60HZ,HVAC
Ship Weight:  46 lbs.

APPLICATIONS: Designed for operating vertical shaft-up on condenser fan, air over applications. Enclosed endshield on shaft-end prevents contaminants from entering motor when mounted vertical shaft-up. Designed for belly band mount with three support screws located at 120* increments in motor frame. Shaft flingers located both internally and externally.

FEATURES:

  • Rigid Base
  • Do Not use with AC Inverters
  • Double sealed ball bearings with Exxon POLYREX EM grease having operating temperature range of -20* to +350*F and special formulation to provide extra long life and moisture resistance
  • Phosphatized shaft for corrosion resistance
  • Gasketed conduit box
  • Ground screw accommodations
  • 1.15 Service Factor
  • Automatic overload protector also guards against primary single phasing-- UL component recognized (File E57955)
Volts 208-230 Volts 460 Volts
F.L. Amps 5.6 F.L. Amps 2.8 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1200 Hertz 60
HP 1.5 Duty AIROVER TYPE TD
KW 1.119 Model # A6T11DB21A
Frame J56HY Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class B Protection AUTOMATIC Therm.Prot. MWJ44KR
Eff 100% 79 Eff 75%   PF 68
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 46 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004001 Mounting RIGID Rotation REV

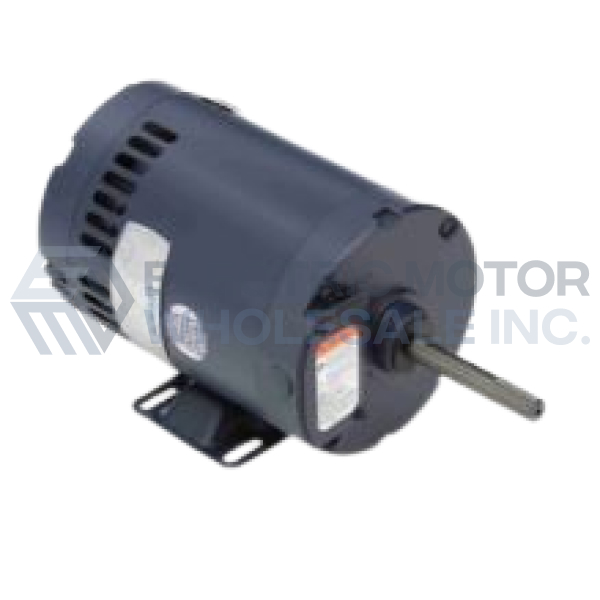

1.5HP LEESON 1140RPM 56HY DP 3PH MOTOR 115779
Click Image to Enlarge
Manufacturer Part Number: 115779.00
Stock # 115779
Price: $421.00
Compare At: $995.00
