1.5HP LEESON 1200RPM 56HC TEFC 3PH MOTOR 115746.00

Catalog Number: 115746.00
Model Number: C6T11WK4
Description:  1.5HP,1200RPM,56HC,TEFC,3PH,EPOXY WASHGUARD
Ship Weight: 31 lbs.

LEESON Three Phase White Duck Washguard Epoxy Motor is designed for enhanced performance in wet, humid areas. Designed to meet the demanding washdown conditions that you may find in food processing plants, chemical processing, pharmaceutical plants, and the beverage and brewing industries.

  • Made in the USA
  • The original moisture-shedding "duck" motor
  • Durable rolled steel frame
  • C-Face mounting provisions with rigid base
  • Combination 56H base has mounting holes for 56 and 143-5T
  • USDA-approved, high-gloss, white epoxy finish
  • 5/8" Keyed output shaft
  • 303 stainless-steel shaft and moisture-resistant shaft system
  • Frame, base, endshields, rotor, and interior components are protected by enamel and polyester compounds
  • High temperature, moisture resistant IRIS® insulation system
  • Cast, oversized conduit box with tough, high-temperature nitrile gaskets and stainless-steel cover and hardware
  • Excellent for applications requiring a motor that is "tropicalized"
  • Double-sealed, oversized bearings
  • Stainless-steel or white polypropylene fan guard on all Washguard frames.
  • Stainless-steel, “full-fact” nameplate
  • Four condensate drains in each endshield
  • Meets IP55 enclosure protection



Volts 208-230 Volts 460 Volts
F.L. Amps 5.7 F.L. Amps 2.85 F.L. Amps
S. F Amps 6.2 S. F Amps 3.1 S. F Amps
RPM 1200 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE TF
KW 1.12 Motor # C6T11WK4E
Frame 56HC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 77 Eff 75%   PF 64
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number NONE CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 45 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 080904 Mounting RIGID Rotation REV

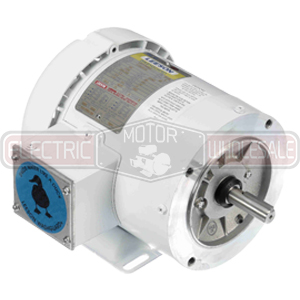

1.5HP LEESON 1200RPM 56HC TEFC 3PH MOTOR 115746.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 115746.00
Stock # 115746
