1HP LEESON 1200RPM 56HC TEFC 3PH MOTOR 115745.00

LEESON 115745.00 has been Superseded by 119478.00

Catalog Number:  115745.00
Model Number: C6T11WK3
Description:  1HP,1200RPM,56C,TEFC,3PH,EPOXY WASHGUARD
Ship Weight:  35 lbs.
Volts 208-230 Volts 460 Volts
F.L. Amps 4 F.L. Amps 2 F.L. Amps
S. F Amps 4.2 S. F Amps 2.1 S. F Amps
RPM 1200 Hertz 60
HP 1 Duty CONTINUOUS TYPE TF
KW 0.75 Model # C6T11WK3 E
Frame 56H C Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 77 Eff 75%   PF 61
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number NONE CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 38 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 080904 Mounting RIGID C Rotation REV

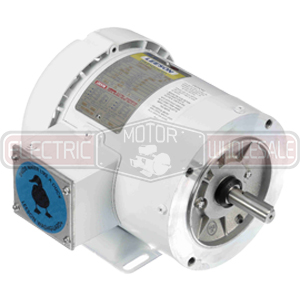

1HP LEESON 1200RPM 56HC TEFC 3PH MOTOR 115745.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 115745.00
Stock # 115745
