3/4HP LEESON 1140RPM 56HC TENV 3PH MOTOR 115744

Catalog Number: 115744.00
Model Number: C6T11VK2
Description: 3/4HP,1140RPM,56HC,TENV,3PH,60HZ,WASHGUARD
Ship Weight:  47 lbs.

LEESON WASHGUARD WHITE EPOXY Three Phase Motors are designed for superior extended service in severe environments. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

NOTE: This motor is totally enclosed, non ventilated.

  • LEESON'S original moisture-shedding "duck" motor
  • USDA-approved white epoxy finish
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • IRIS insulation system
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • Three phase motors are suitable for use on VFDs
  • 10:1 ratio for constant or variable torque at 1:0 SF
  • Combination 56H base motors have mounting holes for NEMA 56 and a standard NEMA 56 shaft.



Volts 208-230 Volts 460 Volts
F.L. Amps 3 F.L. Amps 1.5 F.L. Amps
S. F Amps 3.2 S. F Amps 1.6 S. F Amps
RPM 1200 Hertz 60
HP 3/4 Duty CONTINUOUS TYPE TN
KW 0.56 Model # C6T11VK2 D
Frame 56HC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 78.5 Eff 75%   PF 59.5
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 47 LB Enclosure TENV Lubrication POLYREX EM
Nameplate 080904 Mounting RIGID C Rotation REV

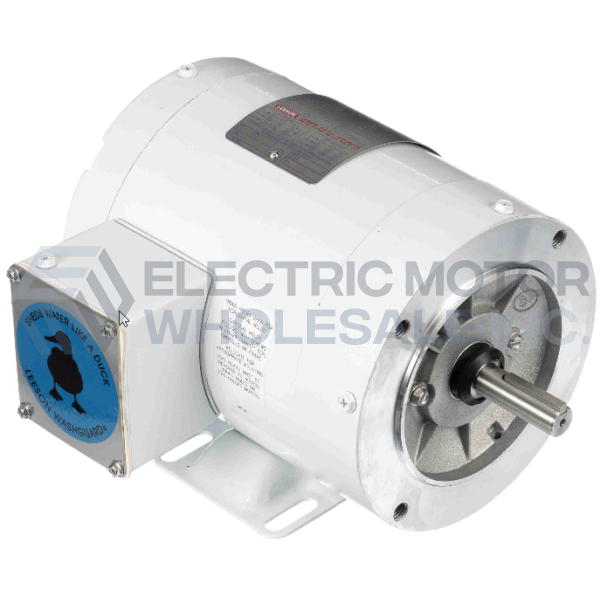

3/4HP LEESON 1140RPM 56HC TENV 3PH MOTOR 115744
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 115744.00
Stock # 115744
Price: $427.00
Compare At: $1,132.00
