Home > Electric Motors > Discontinued Electric Motors > LEESON Discontinued AC Motors > 1.5HP LEESON 1740RPM 56C EPFC 3PH MOTOR 114634.00

1.5HP LEESON 1740RPM 56C EPFC 3PH MOTOR 114634.00

LEESON 114634.00 has been superseded by 119440.00

Catalog Number:  114634.00
Model Number:  A6T17XK13 B
Description:  1.5HP,1740RPM,56C,EPFC,3PH,60HZ
Ship Weight:  45 lbs.
Volts 208-230 Volts 460 Volts
F.L. Amps 4.5-4.4 F.L. Amps 2.2 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE TX
KW 1.12 Model # A6T17XK13B
Frame 56C Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code M
Insul Class B Protection AUTOMATIC Therm.Prot. MWJ41KX
Eff 100% 84 Eff 75%   PF 76
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 45 LB Enclosure EPFC Lubrication POLYREX EM
Nameplate   Mounting RIGID Rotation REV

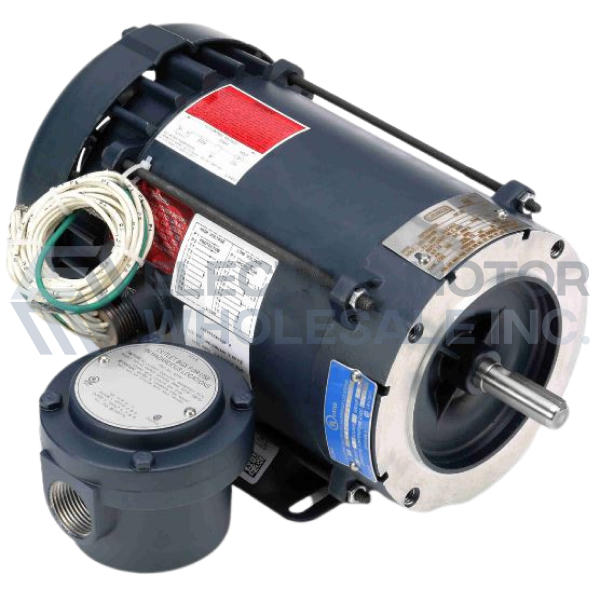

1.5HP LEESON 1740RPM 56C EPFC 3PH MOTOR 114634.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 114634.00
Stock # 114634
