1/4HP LEESON 1140RPM 56 TEFC 1PH MOTOR 114617.00

Catalog Number:  114617.00
Model Number:  C6C11FB7D
Description:  1/4HP,1140RPM,56,TEFC,1PH,60HZ
Ship Weight:  33 lbs.

APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:

  • Made in USA
  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • High-quality ball bearings
  • Capacitor Start
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 5.6 F.L. Amps 2.8 F.L. Amps
S. F Amps 6 S. F Amps 3 S. F Amps
RPM 1200 Hertz 60
HP 1/4 Duty CONTINUOUS TYPE CF
KW .187 Model Number C6C11FB7D
Frame 56 Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code N
Insul Class B Protection NOT Therm.Prot.
Eff 100% 59 Eff 75%   PF 47
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 33 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW

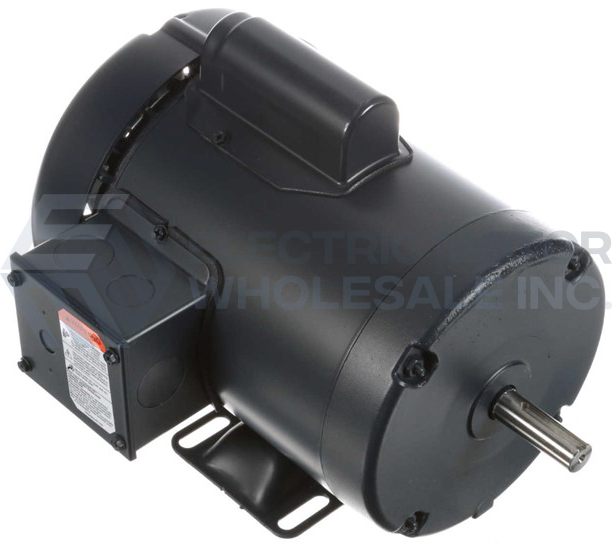

1/4HP LEESON 1140RPM 56 TEFC 1PH MOTOR 114617.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 114617.00
Stock # 114617
Price: $242.00
Compare At: $589.00
