1HP LEESON 2850RPM 56H IP22 1PH 50HZ MOTOR 114228.00

Catalog Number:  114228.00
Model Number:  C6C28DR4 C
Description:  1HP,2850RPM,56H,IP22,1PH,50HZ
Ship Weight:  34 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

IP22 Models: For use where water and dust exposure is moderate. Suitable for belt-driven fans or fan-or-shaft applications. Self-ventilated design, may be mounted outside of the fan's airflow. 50 Hz single phase designs produce full rated HP on 50Hz power supply.

APPLICATIONS: Industrial quality, resilient (cradle) mounted, capacitor start-type, ball bearing motors for fan and blower service. Moderate starting torque electrical design to reduce stress on fan blades during start-up. Capacitor-type design has higher energy efficiency rating than split phase, single phase fan and blower motors. Suitable for belt-driven fans or fan-or-shaft applications. Self-ventilated design, may be mounted outside of the fan's airflow.

FEATURES:

  • Made in USA
  • 5/8" shaft output diameter
  • Drip-proof and totally enclosed designs
  • Industrial quality, resilient (cradle) mounted
  • Capacitor start-type
  • Ball bearing designs
  • Moderate starting torque to reduce machinery stresses
  • Suitable for belt-driven fans or fan-on-shaft applications
Volts 110 Volts 220 Volts
F.L. Amps 13.2 F.L. Amps 6.6 F.L. Amps
S. F Amps 15 S. F Amps 7.5 S. F Amps
RPM 3000 Hertz 50
HP 1 Duty CONTINUOUS TYPE CD
KW 0.75 Model # C6C28DR4C
Frame 56H Serv. Factor 1.25 Phase 1
Max Amb 40 Design NO DESIGN CODE Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100% 66 Eff 75%   PF 78
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE Yes Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 34 LB Enclosure IP22 Lubrication POLYREX EM
Nameplate 080671 Mounting RESIL Rotation SELECTIVE CCW

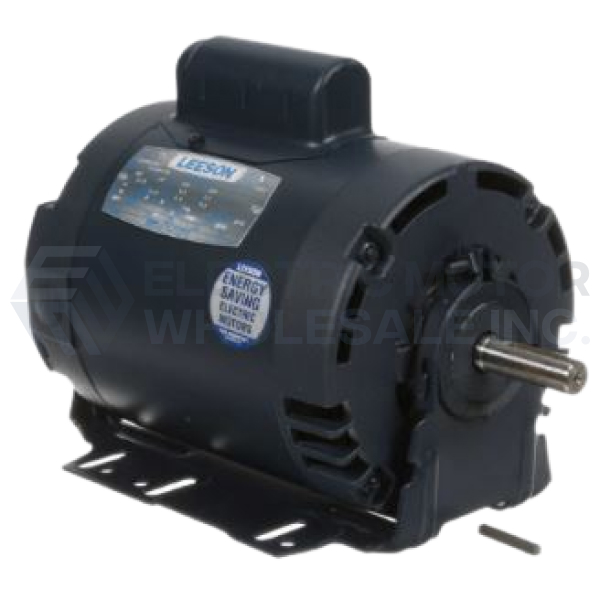

1HP LEESON 2850RPM 56H IP22 1PH 50HZ MOTOR 114228.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 114228.00
Stock # 114228
Price: $270.00
Compare At: $682.00
