3/4HP LEESON 1425RPM 56 IP22 1PH 50HZ MOTOR 114227.00

Catalog Number:  114227.00 - FREE Ground Shipping in USA
Model Number:  A4C17DJ73 B
Description:  3/4HP,1425RPM,56,IP22,1PH,50HZ
Ship Weight:  34 lbs.

LEESON Single Phase IP22 Resilient Base 50HZ Motor for use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans, and belted applications.

FEATURES:

  • MADE IN USA
  • Durable rolled steel frame
  • 5/8" Keyed output shaft
  • Industrial quality resilient base
  • Capacitor start
  • Moderate starting torque
  • UL Recognized and CSA Certified
Volts 110 Volts 220 Volts
F.L. Amps 11.8 F.L. Amps 5.9 F.L. Amps
S. F Amps 12.8 S. F Amps 6.4 S. F Amps
RPM 1500 Hertz 50
HP 3/4 Duty CONTINUOUS TYPE CD
KW 0.55 Model # C6C14DR16D
Frame E56H Serv. Factor 1.25 Phase 1
Max Amb 40 Design NO DESIGN CODE Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100%   Eff 75%   PF
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE Yes Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 34 LB Enclosure IP22 Lubrication POLYREX EM
Nameplate 080671 Mounting RESIL Rotation SELECTIVE CCW
3/4HP LEESON 1425RPM 56 IP22 1PH 50HZ MOTOR 114227.00

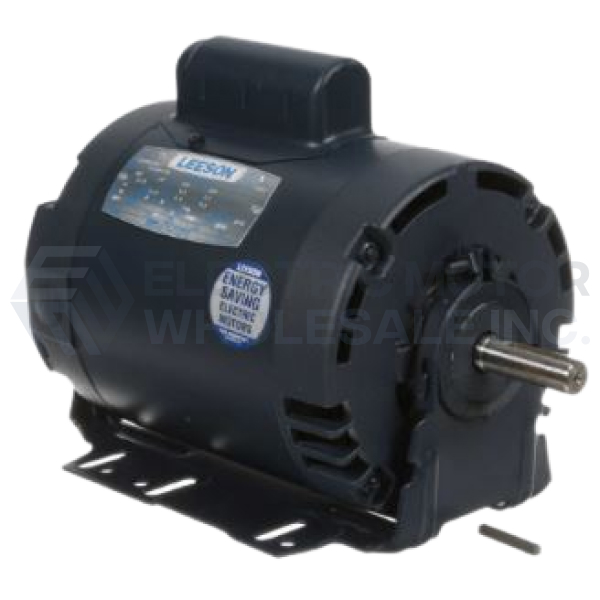

Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 114227.00
Stock # 114227
Price: $375.00
Compare At: $945.00
