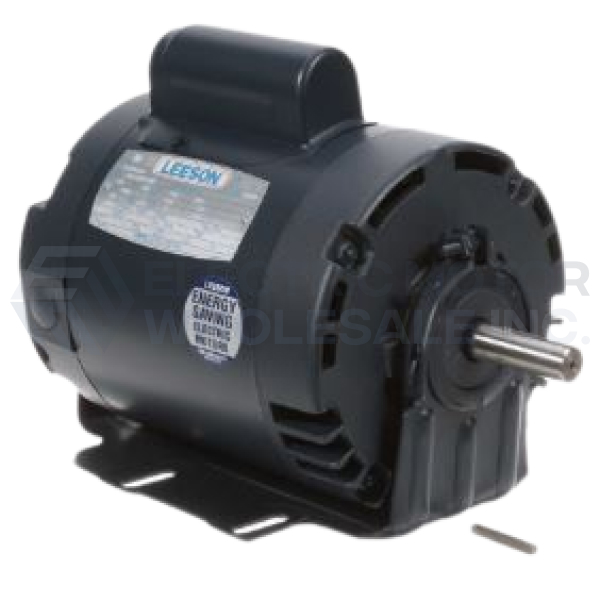

1/3HP LEESON 1425RPM 56 IP22 1PH 50HZ MOTOR 114223.00
|Catalog Number:||114223.00 Made in USA|
|Model Number:||C6C14DR18 D|
|Ship Weight:||30 lbs.|
This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.
IP22 Models: For use where water and dust exposure is moderate. Suitable for belt-driven fans or fan-or-shaft applications. Self-ventilated design, may be mounted outside of the fan's airflow. 50 Hz single phase designs produce full rated HP on 50Hz power supply.
APPLICATIONS: Industrial quality, resilient (cradle) mounted, capacitor start-type, ball bearing motors for fan and blower service. Moderate starting torque electrical design to reduce stress on fan blades during start-up. Capacitor-type design has higher energy efficiency rating than split phase, single phase fan and blower motors. Suitable for belt-driven fans or fan-or-shaft applications. Self-ventilated design, may be mounted outside of the fan's airflow.
- Made in USA
- 5/8" shaft output diameter
- Drip-proof and totally enclosed designs
- Industrial quality, resilient (cradle) mounted
- Capacitor start-type
- Ball bearing designs
- Moderate starting torque to reduce machinery stresses
- Suitable for belt-driven fans or fan-on-shaft applications
|F.L. Amps||6.4||F.L. Amps||3.2||F.L. Amps|
|S. F Amps||7||S. F Amps||3.5||S. F Amps|
|Max Amb||40||Design||NO DESIGN CODE||Code||L|
|Eff 100%||65.3||Eff 75%||PF||60.5|
|CC Number||EXEMPT||CE||Yes||Bearing PE||6203|
|Load Type||Inverter Type||Speed Range||NONE|
|Motor Wt.||30 LB||Enclosure||IP22||Lubrication||POLYREX EM|
