2HP LEESON 3450RPM 56C DP 1PH MOTOR 114215.00

LEESON 114215.00 has been Superseded by E114215.00

Catalog Number:  114215.00
Model Number:  P6K34DK9B
Description:  2HP,3450RPM,56C,DP,1PH,60HZ
Ship Weight:  38 lbs.
Volts 115 Volts 208-230 Volts
F.L. Amps 17.2 F.L. Amps 9.6-8.6 F.L. Amps
S. F Amps 19.6 S. F Amps 10.8-9.8 S. F Amps
RPM 3600 Hertz 60
HP 2 Duty CONTINUOUS TYPE KD
KW 1.492 Model # P6K34DK9B
Frame 56C Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code H
Insul Class B Protection MANUAL Therm.Prot. BEJ46DA
Eff 100% 78 Eff 75%   PF 96
UL No CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 38 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004004 Mounting RIGID C Rotation SELECTIVE CCW

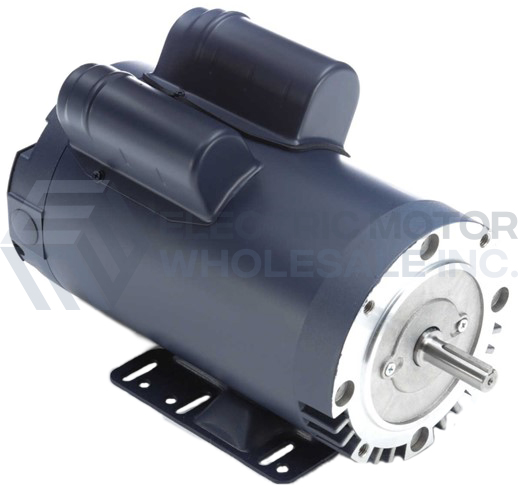

2HP LEESON 3450RPM 56C DP 1PH MOTOR 114215.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 114215.00
Stock # 114215
