1.5HP LEESON 3450RPM 56C DP 1PH MOTOR 114214.00

LEESON 114214.00 has been Superseded by E114214.00

Catalog Number:  114214.00
Model Number:  M6K34DK8B
Description:  1.5HP,3450RPM,56C,DP,1PH,60HZ
Ship Weight:  38 lbs.
Volts 115 Volts 208-230 Volts
F.L. Amps 12.4 F.L. Amps 6.8-6.2 F.L. Amps
S. F Amps 14 S. F Amps 7.8-7 S. F Amps
RPM 3600 Hertz 60
HP 1.5 Duty CONTINUOUS TYPE KD
KW 1.12 Model # M6K34DK8 B
Frame 56C Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code H
Insul Class B Protection MANUAL Therm.Prot. CEJ50CA
Eff 100% 82.5 Eff 75%   PF 96
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 38 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004004 Mounting RIGID C Rotation SELECTIVE CCW

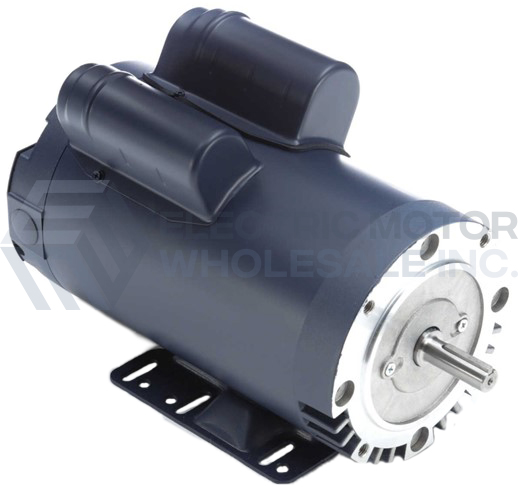

1.5HP LEESON 3450RPM 56C DP 1PH MOTOR 114214.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 114214.00
Stock # 114214
