1/3HP LEESON 1725RPM 56C TENV 1PH BRAKEMOTOR 114165.00

Catalog Number:  114165.00 Made in USA
Model Number:  C6C17NK19D
Description:  1/3HP,1725RPM,56C,TENV,1PH,60HZ,BRAKE
Brake Rating:  3 ft-lbs
Ship Weight:  31 lbs.

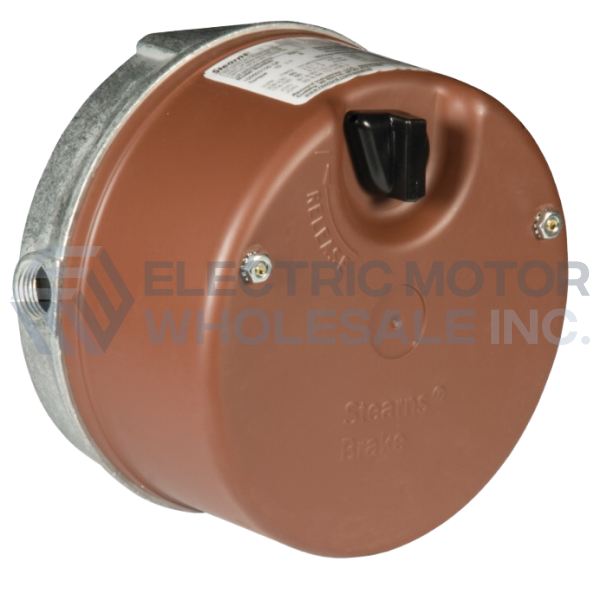

APPLICATIONS: Fail-safe positive, stop and hold brakemotors. Brakes are spring set. Load stopped automatically when power is turned off. LEESON brakemotors feature a power off manual release for convenience, and for use in case of a power failure. The manual release resets automatically. The standard brake is manufactured by Stearns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off, or to be actuated independent of power to the motor. Single phase motors have brake coils rated for 115/230VAC, 60Hz.

FEATURES:

  • Made in USA
  • TENV totally enclosed non-vented
  • Fail-safe positive stop and holding brakes
  • Load stops automatically when power is turned off
  • Dual voltage brake coils
Volts 115 Volts 208-230 Volts
F.L. Amps 5.8 F.L. Amps 2.9 F.L. Amps
S. F Amps 6 S. F Amps 3 S. F Amps
RPM 1800 Hertz 60
HP 1/3 Duty CONTINUOUS TYPE CN
KW 0.25 Model # C6C17NK19D
Frame D56C Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code N
Insul Class B Protection NOT Therm.Prot.
Eff 100% 70 Eff 75%   PF 54
UL Yes CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 31 LB Enclosure TENV Lubrication POLYREX EM
Nameplate 004003 Mounting RIGID Rotation SELECTIVE CCW

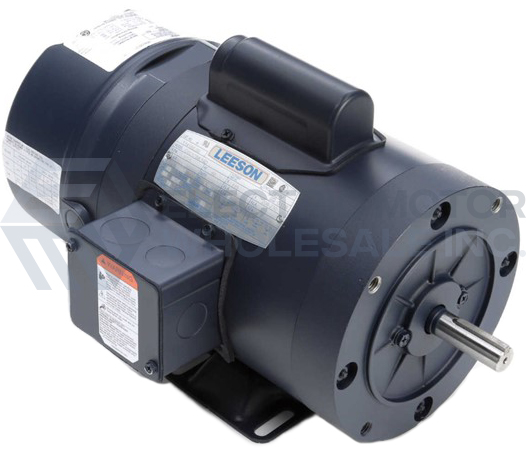

1/3HP LEESON 1725RPM 56C TENV 1PH BRAKEMOTOR 114165.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 114165.00
Stock # 114165
Price: $461.00
Compare At: $1,164.00
