3HP LEESON 2850RPM 56H IP22 1PH MOTOR 113937.00

Catalog Number:  113937.00 - FREE Ground Shipping in USA
Model Number:  C6K28DB5 F
Description:  3HP,2850RPM,56H,IP22,1PH,50HZ
Ship Weight:  47 lbs.

LEESON Single Phase 50HZ Motor produces full rated HP on 50Hz power supply. For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features Include:

  • Made in USA
  • Durable rolled steel frame
  • 5/8" Keyed output shaft
  • Combination 56H base has mounting holes for 56 and 143-5T
  • High torque exceeds NEMA performance standards
  • Capacitor start motor with centrifugal switch designed for 50Hz service
  • Shielded ball bearings
  • UL Recognized and CSA Certified
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 220 Volts   Volts
F.L. Amps 12.4 F.L. Amps   F.L. Amps
S. F Amps 14.4 S. F Amps   S. F Amps
RPM 3000 Hertz 50
HP 3 Duty CONTINUOUS TYPE KD
KW 2.2 Model Number C6K28DB5F
Frame 56H Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 96
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE Yes Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 50 LB Enclosure IP22 Lubrication POLYREX EM
Nameplate 080671 Mounting RIGID Rotation SELECTIVE CCW

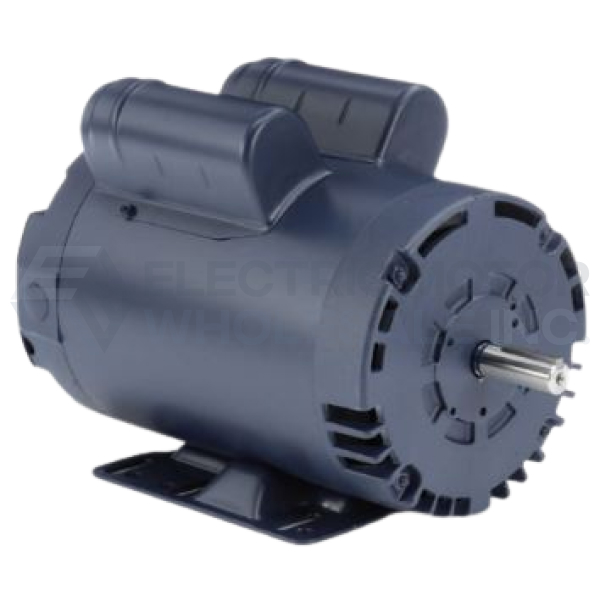

3HP LEESON 2850RPM 56H IP22 1PH MOTOR 113937.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 113937.00
Stock # 113937
Price: $525.00
Compare At: $1,325.00
