1.5HP LEESON 1725RPM 56HC DP 1PH MOTOR 113932.00

LEESON 113932.00 has been superseded by E113932.00

Catalog Number:  113932.00
Model Number:  C6K17DK16E
Description:  1.5HP,1725RPM,56HC,DP,1PH,60HZ
Ship Weight:  42 lbs.

APPLICATIONS: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

FEATURES:

  • Made in USA
  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • High-quality ball bearings
  • Capacitor start/capacitor run design for reduced amperage
  • Easy-to-read nameplate
  • Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation
  • UL Recognized Component Listing and CSA approval
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 17.2 F.L. Amps 8.6 F.L. Amps
S. F Amps 19 S. F Amps 9.5 S. F Amps
RPM 1800 Hertz 60
HP 1.5 Duty CONTINUOUS TYPE KD
KW 1.119 Model # C6K17DK16 E
Frame G56HC Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100% 79 Eff 75%   PF 73
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 42 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004003 Mounting RIGID C Rotation SELECTIVE CCW

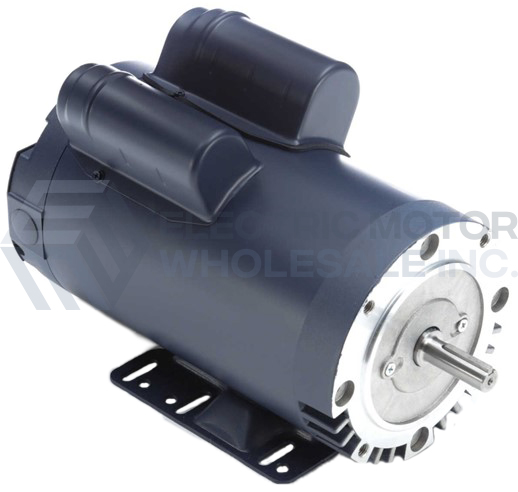

1.5HP LEESON 1725RPM 56HC DP 1PH MOTOR 113932.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 113932.00
Stock # 113932
Price: $302.00
Compare At: $730.00
