1.5HP LEESON 1425RPM 56H IP43 1PH 50HZ MOTOR 113929.00
1.5HP LEESON 1425RPM 56H IP43 1PH 50HZ MOTOR 113929.00

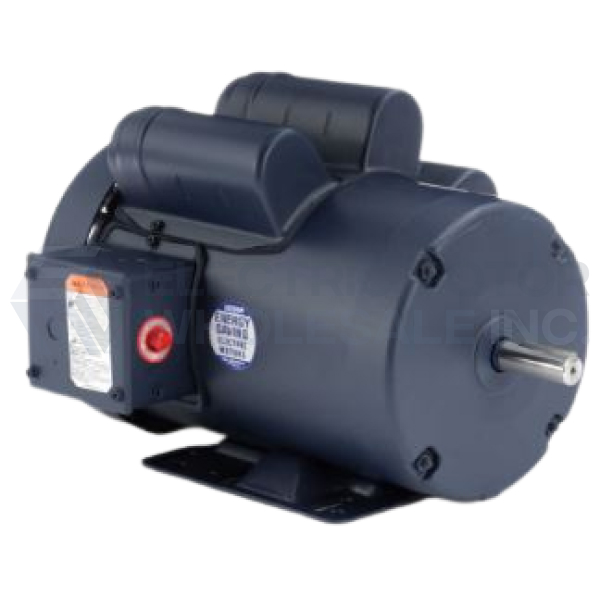

Picture is for reference only.
Part Number:
113929.00Model/Spec Number:
P6K14FB9Manufacturer:
Regal Rexnord CommercialThis part is non-returnable. Use the Cut-Sheet provided to confirm product specs.
MSRP: $1,718.00
Regular Price
USD
$
714
00
Shipping Details
Weight:
54 lbsDimensions:
16 x 20 x 15 inchesHS Code:
8501.40.6040UPC:
691720012895Technical Details
Specifications
Application: | General Purpose |
Output HP: | 1.5 |
Output KW: | 1.1 |
Output RPM: | 1425 |
Frame NEMA: | 56H |
Mount NEMA: | Base Mount |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP43 |
Voltage: | 110/220 |
Frequency (Hz): | 50 |
Documentation
Additional Information
LEESON Single Phase 50HZ Motor produces full rated HP on 50Hz power supply. For use in moderately dusty or dirty environments. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.
Features:
- 5/8" Keyed output shaft
- Durable rolled steel frame
- Combination 56H base has mounting holes for 56 and 143-5T
- Shielded ball bearings
- Capacitor Start/Capacitor Run for reduced amperage
- Centrifugal switch designed for 50Hz service
- UL Recognized and CSA Certified
This part is non-returnable. Use the Cut-Sheet provided to confirm product specs.
