2HP LEESON 2850RPM 50HZ IP54 1PH MOTOR 113928.00

Catalog Number:  113928.00 - FREE Ground Shipping in USA
Model Number:  C6C28FB24 F
Description:  2HP,2850RPM,50HZ,IP54,1PH,50HZ
Ship Weight:  44 lbs.

LEESON Single Phase 50HZ Motor produces full rated HP on 50Hz power supply. For use in moderately dusty or dirty environments. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.


  • Made in USA
  • 2-1/4" long by 7/8" diameter keyed output shaft
  • Durable rolled steel frame
  • Combination 56H base has  mounting holes for 56 and 143-5T
  • Shielded ball bearings
  • Capacitor Start with centrifugal switch designed for 50Hz service
  • UL Recognized and CSA Certified
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 110 Volts 220 Volts
F.L. Amps 21.4 F.L. Amps 10.7 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 3000 Hertz 50
KW 1.49 Model Number C6C28FB24F
Frame 56HZ Serv. Factor 1.0 Phase 1
Max Amb 40 Design NODESIGNCODE Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 70 Eff 75%   PF 85
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 47 LB Enclosure IP54 Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW

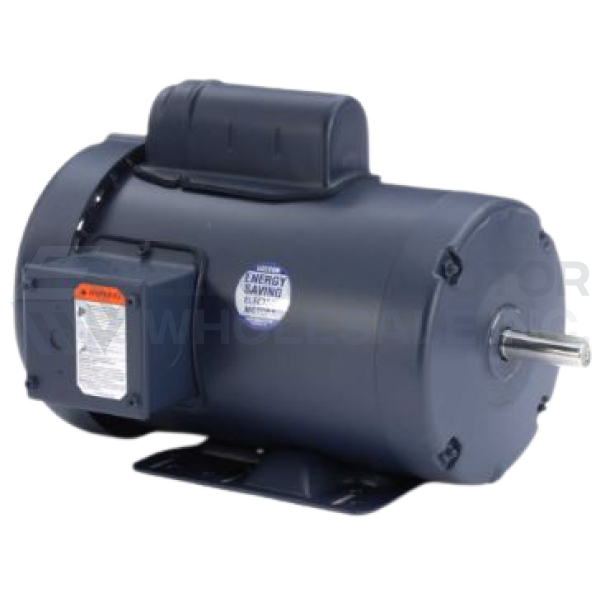

2HP LEESON 2850RPM 50HZ IP54 1PH MOTOR 113928.00
