1.5HP LEESON 2850RPM 56H IP54 1PH MOTOR 113920.00

Catalog Number:  113920.00
Model Number:  C6C28FB29G
Description:  1.5HP,2850RPM,56H,IP54,1PH,50HZ
Ship Weight:  47 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

Features include

  • Made in USA
  • 5/8" Keyed output shaft
  • Durable rolled steel frame
  • High-quality ball bearings
  • Capacitor Start
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.

IP54 Models: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

General Specifications: 50 Hz single phase designs produce full rated HP on 50Hz power supply. Designed for general purpose applications.

Electrical Features: High efficiency energy saving designs. Centrifugal switch specifically designed for 50 Hz service. Conduit box with leads. Torque at rated HP on 50 Hz power supply is 20% greater than the running torque of a 60 Hz motor. All 180 and 210 frame Rolled Steel motors have Class F Insulation.

Volts 110 Volts 220 Volts
F.L. Amps 16 F.L. Amps 8 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 3000 Hertz 50
HP 1 1/2 Duty CONTINUOUS TYPE CF
KW 1.12 Model Number C6C28FB29G
Frame 56H Serv. Factor 1.0 Phase 1
Max Amb 40 Design NO DESIGN CODE Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100% 75.5 Eff 75%   PF 84
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 47 LB Enclosure IP54 Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW

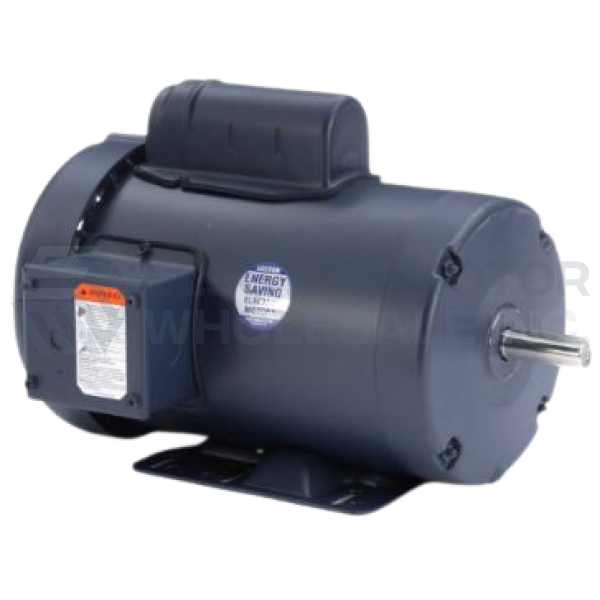

1.5HP LEESON 2850RPM 56H IP54 1PH MOTOR 113920.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 113920.00
Stock # 113920
Price: $366.00
Compare At: $923.00
