3/4HP LEESON 2850RPM 56 IP54 1PH 50HZ MOTOR 113918.00

3/4HP LEESON 2850RPM 56 IP54 1PH 50HZ MOTOR 113918.00

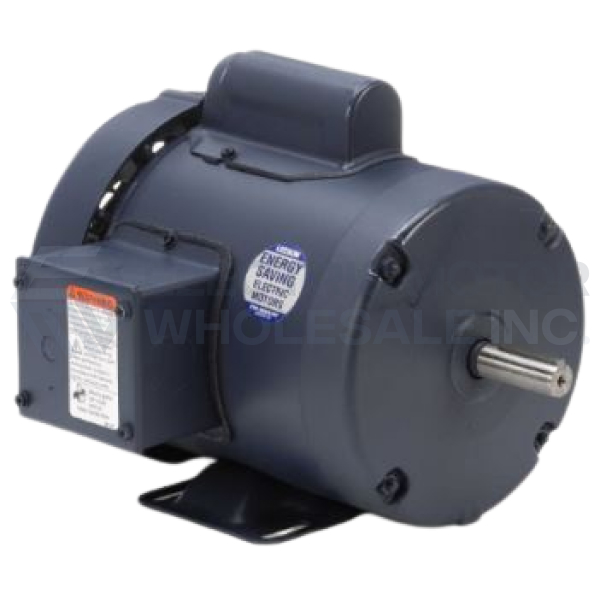

Picture is for reference only.

Part Number:

113918.00

Model/Spec Number:

C6C28FB27

Manufacturer:

Leeson Obsolete
113918.00 LEESON 3/4HP Single Phase 50HZ Motor produces full rated HP on 50Hz power supply. For use in moderately dusty or dirty environments. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Item Discontinued

Click below to request an agent review potential options.

Weight:

34 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.4040

UPC:

691720012802

Technical Details

Application:

General Purpose

Output HP:

3/4

Output KW:

0.56

Output RPM:

2850

Frame NEMA:

56

Mount NEMA:

Base Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP54

Voltage:

110/220

Frequency (Hz):

50

Product Information Packet
