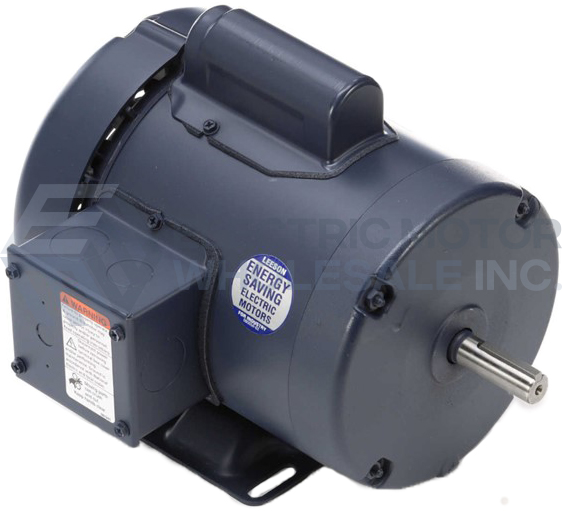

1/3HP LEESON 2850RPM 56 IP54 1PH MOTOR 113916.00

Catalog Number:  113916.00 - FREE Ground Shipping in USA
Model Number:  C6C28FB25 F
Description:  1/3HP,2850RPM,56,IP54,1PH,50HZ
Ship Weight:  25 lbs.

LEESON Single Phase 50HZ Motor produces full rated HP on 50Hz power supply. For use in moderately dusty or dirty environments. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features:

  • Made in USA
  • 5/8" Keyed output shaft
  • Durable rolled steel frame
  • Shielded ball bearings
  • Capacitor Start with centrifugal switch designed for 50Hz service
  • UL Recognized and CSA Certified
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 110 Volts 220 Volts
F.L. Amps 6.4 F.L. Amps 3.2 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 3000 Hertz 50
HP 1/3 Duty CONTINUOUS TYPE CF
KW .246 Model Number C6C28FB25F
Frame 56 Serv. Factor 1.0 Phase 1
Max Amb 40 Design N Code N
Insul Class B Protection NOT Therm.Prot.
Eff 100% 56 Eff 75%   PF 74
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 28 LB Enclosure IP54 Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW
