1/2HP LEESON 1425RPM 56 IP54 1PH 50HZ MOTOR 113909.00

1/2HP LEESON 1425RPM 56 IP54 1PH 50HZ MOTOR 113909.00

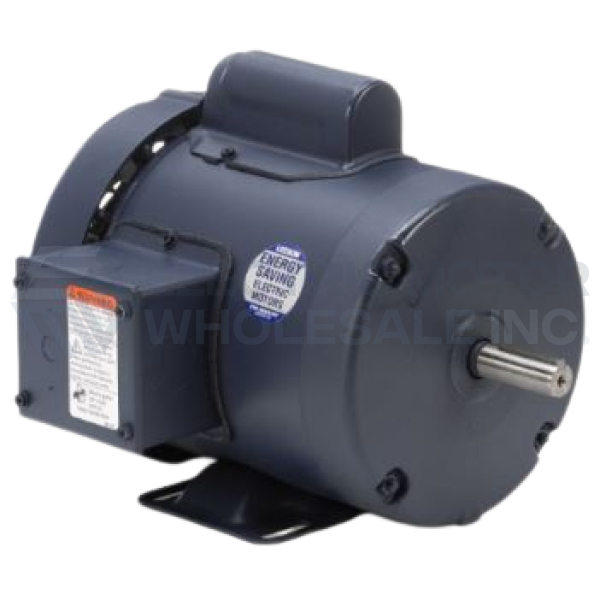

Picture is for reference only.

Part Number:

113909.00

Model/Spec Number:

M6C14FB23

Manufacturer:

Leeson Obsolete
113909.00 LEESON 1/2HP Single Phase 50HZ Motor is designed to produce full rated horsepower on 50Hz power supply. These motors are designed for general purpose applications.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

34 lbs

Dimensions:

13 x 17 x 13 inches

HS Code:

8501.40.4040

UPC:

691720012697

Technical Details

Application:

General Purpose

Output HP:

1/2

Output KW:

0.37

Output RPM:

1425

Frame NEMA:

56

Mount NEMA:

Base Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP54

Voltage:

110/220

Frequency (Hz):

50

Product Information Packet

LEESON Single Phase 50HZ Motor produces full rated HP on 50Hz power supply. For use in moderately dusty or dirty environments. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features:

  • 5/8" Keyed output shaft
  • Durable rolled steel frame
  • Shielded ball bearings
  • Capacitor Start with centrifugal switch designed for 50Hz service
  • UL Recognized and CSA Certified
