1.5HP LEESON 1425RPM 56YZ TEFC 1PH 50HZ MOTOR 113907.00

Catalog Number:  113907.00
Model Number:  P6K14FZ2G
Description:  1.5HP,1425RPM,56YZ,TEFC,1PH,50HZ
Ship Weight:  51 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

LEESON FEED-AUGER DRIVE MOTOR, Dust-tight, capacitor start motor with your choice of field proven electronic or protected mechanical starting switch--both eliminate damage caused when motor is over-speeded by obstructed auger. Ball-bearing, heavy duty industrial quality designs for high overload capacity. Side mounted conduit box. Flange mounts directly to drive assembly. Fully gasketed to keep out feed dust. Has screw driver slot in rear shaft. Continuous duty, with manual thermal overload protection.

FEATURES:

  • Shaft is 5/8” Dia. X 1.97” ling with 3/16” keyway
  • Mechanical centrifugal starting switch with overspeed protection, others have electronic start switch
  • Manual overload protected
  • Non USA Manufactured, MX
Volts 110 Volts 220 Volts
F.L. Amps 17.2 F.L. Amps 8.6 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1500 Hertz 50
HP 1 1/2 Duty CONTINUOUS TYPE KF
KW 1.12 Model Number P6K14FZ2G
Frame 56YZ Serv. Factor 1.0 Phase 1
Max Amb 40 Design NO DESIGN CODE Code J
Insul Class F Protection MANUAL Therm.Prot. BRJ47DA
Eff 100% 76 Eff 75%   PF 78
UL N-(LEESON NOT UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 51 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting SPECIAL Rotation SELECTIVE CCW

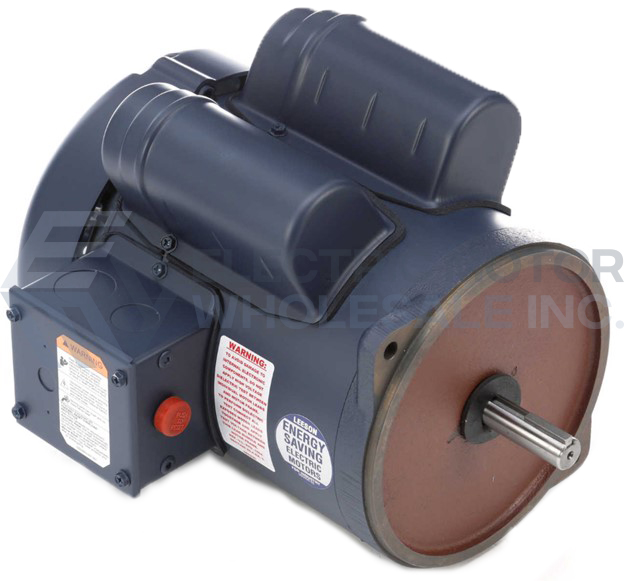

1.5HP LEESON 1425RPM 56YZ TEFC 1PH 50HZ MOTOR 113907.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 113907.00
Stock # 113907
Price: $713.00
Compare At: $1,897.00
