2HP LEESON 2850RPM 56H IP22 1PH MOTOR 113905.00

Catalog Number:  113905.00 Made in USA
Model Number:  C6C28DB28E
Description:  2HP,2850RPM,56H,IP22,1PH,50HZ
Ship Weight:  45 lbs.

This Leeson Motor Can Only Ship Ground Freight
For expedited needs please contact our sales team.

DP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

General Specifications: 50 Hz single phase designs produce full rated HP on 50Hz power supply. Designed for general purpose applications.

Electrical Features: High efficiency energy saving designs. Centrifugal switch specifically designed for 50 Hz service. Conduit box with leads. Torque at rated HP on 50 Hz power supply is 20% greater than the running torque of a 60 Hz motor. All 180 and 210 frame Rolled Steel motors have Class F Insulation.

Features Include:

  • Made in USA
  • 5/8" shaft output diameter
  • Durable rolled steel frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation.
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 110 Volts 220 Volts
F.L. Amps 21.4 F.L. Amps 10.7 F.L. Amps
S. F Amps 25 S. F Amps 12.5 S. F Amps
RPM 3000 Hertz 50
HP 2 Duty CONTINUOUS TYPE CD
KW 1.5 Model Number C6C28DB28E
Frame 56H Serv. Factor 1.15 Phase 1
Max Amb 40 Design NO DESIGN CODE Code H
Insul Class B Protection NOT Therm.Prot.
Eff 100% 70 Eff 75%   PF 85
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE Yes Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 45 LB Enclosure IP22 Lubrication POLYREX EM
Nameplate 080671 Mounting RIGID Rotation SELECTIVE CCW

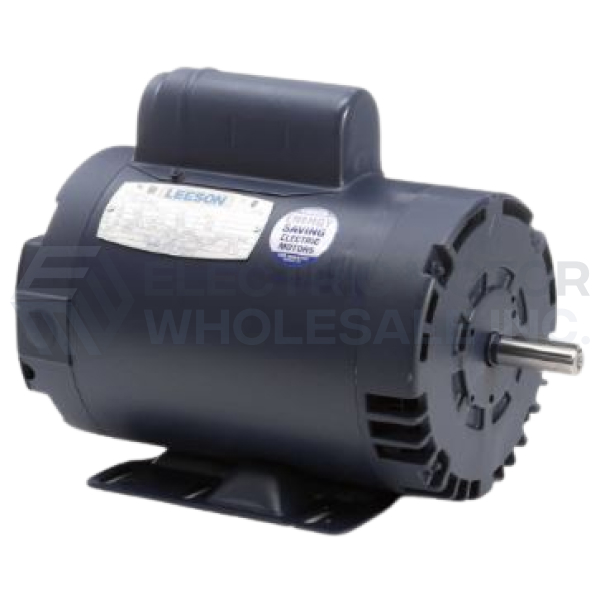

2HP LEESON 2850RPM 56H IP22 1PH MOTOR 113905.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 113905.00
Stock # 113905
Price: $444.00
Compare At: $1,119.00
