2HP LEESON 3450RPM 56J DP 3PH MOTOR 113892

Catalog Number:  113892.00 - FREE Ground Shipping in USA
Model Number:  C6T34DC65
Description:  2HP,3450RPM,56J,DP,3PH,60HZ
Ship Weight:  34 lbs.

Three Phase DP Jet Pump Motor for commercial and industrial service.

  • Made in the USA
  • Steel frame
  • NEMA 56 C face mounting flange, no base
  • Threaded shafts made of 303 grade stainless steel
  • CCW rotation facing lead end
  • Quiet flow-through ventilation system
  • Double sealed bearings on shaft end
  • Terminal board with quick connects
  • Locked shaft end bearings
  • UL recognized and CSA certified
Volts 208-230   Volts 460   Volts 190/380
FL Amps 5.8-5.6   FL Amps 2.8   FL Amps 5/2.5
SF Amps 6.4-6.2   SF Amps 3.1   SF Amps 5.8/2.9
RPM 3600   Hertz 60/50
HP 2   Duty CONTINUOUS   Type TD
KW 1.49   SF 1.15   Phase 3
Frame 56J   Design B   KVA Code L
Ambient 40   Protection NOT   Therm.Prot.
Insulation Class B   Eff(75%)     PF 84
Eff(100%) 82.5   CSA Y   Bearing OPE 6203
UL Y-(LEESON UL REC)   CE N   Bearing PE 6203
CC Number EXEMPT   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 34 LB   Enclosure DP   Lubrication POLYREX EM
Nameplate 004002   Mounting ROUND   Rotation REV
Shaft Diam. 5/8 IN   Cust Part No.     Packaging B
      Winding T632163   Carton Label Leeson Pump
      Group 3   Iris
Paint BLUE - LEESON (ENAMEL)   Hazardous Location NONE   Test Card 02

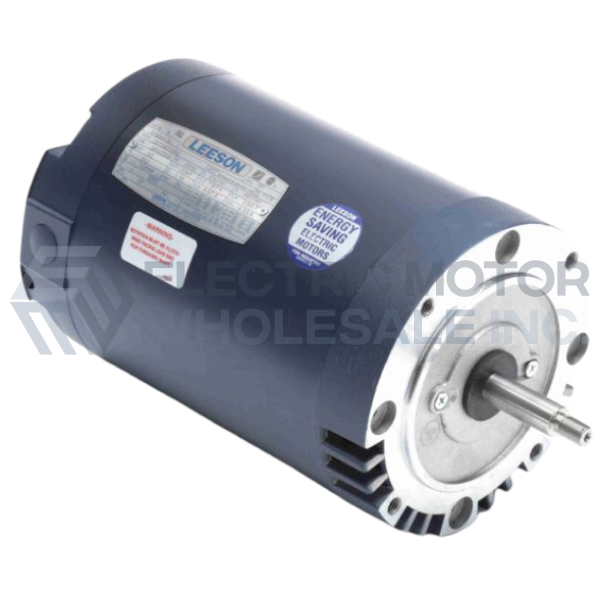

2HP LEESON 3450RPM 56J DP 3PH MOTOR 113892
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 113892.00
Stock # 113892
Price: $281.00
Compare At: $825.00
