1.5HP LEESON 3450RPM 56J DP 3PH MOTOR 113891

Catalog Number:  113891.00 - FREE Ground Shipping in USA
Model Number: C6T34DC64
Description:  1.5HP,3450RPM,56J,DP,3PH,60HZ
Ship Weight:  31 lbs.

Three Phase DP Jet Pump Motor for industrial or commercial service.

FEATURES:

  • Made in the USA
  • Steel frame
  • NEMA 56 C face mounting flange, no base
  • Threaded shafts made of 303 grade stainless steel
  • CCW rotation facing lead end
  • Quiet flow-through ventilation system
  • Double sealed bearings on shaft end
  • Terminal board with quick connects
  • Locked shaft end bearings
  • UL recognized and CSA certified
Volts 208-230   Volts 460   Volts 190/380
FL Amps 4.4-4.2   FL Amps 2.1   FL Amps 3.4/1.7
SF Amps 5-4.8   SF Amps 2.4   SF Amps 3.8/1.9
RPM 3600   Hertz 60/50
HP 1 1/2   Duty CONTINUOUS   Type TD
KW 1.12   SF 1.15   Phase 3
Frame 56J   Design B   KVA Code K
Ambient 40   Protection NOT   Therm.Prot.
Insulation Class B   Eff(75%)     PF 84
Eff(100%) 81.5   CSA Y   Bearing OPE 6203
UL Y-(LEESON UL REC)   CE N   Bearing PE 6203
CC Number EXEMPT   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 31 LB   Enclosure DP   Lubrication POLYREX EM
Nameplate 004002   Mounting ROUND   Rotation REV
Shaft Diam. 5/8 IN   Cust Part No.     Packaging B
      Winding T632162   Carton Label Leeson Pump
      Group 3   Iris
Paint BLUE - LEESON (ENAMEL)   Hazardous Location NONE   Test Card 01

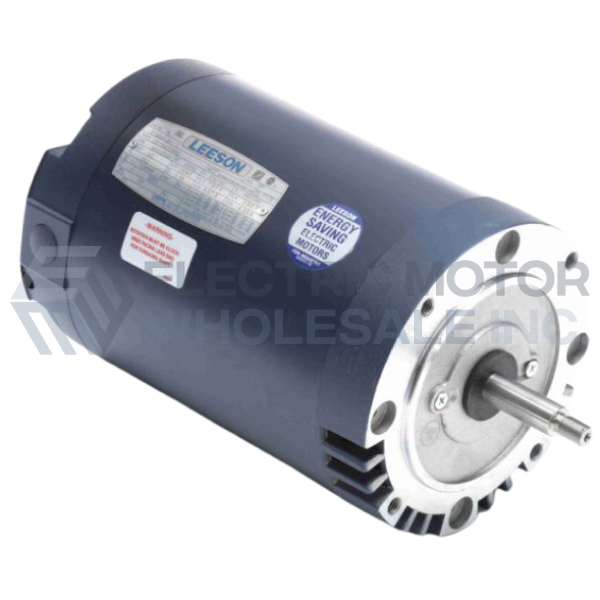

1.5HP LEESON 3450RPM 56J DP 3PH MOTOR 113891
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 113891.00
Stock # 113891
Price: $237.00
Compare At: $695.00
