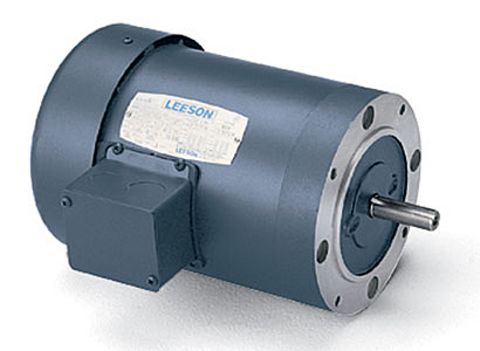

3HP LEESON 1740RPM 56C TEFC 3PH MOTOR 113890.00

Part Number:

113890.00

Model/Spec Number:

C6T17FC91F

Manufacturer:

Leeson Obsolete

113890.00 LEESON 3HP Three Phase TEFC Motor is designed for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

48 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501.52.4000

Technical Details

Specifications

Brand:	Leeson
Application:	General Purpose
Output HP:	3
Output KW:	2.2
Output RPM:	1740
Frame Size NEMA:	56C
Mount NEMA:	C Face No Base
Enclosure NEMA:	TEFC
Voltage:	208-230/460
Frequency (Hz):	60

Documentation

Motor Drawing REF DASH-800

Connection diagram

Additional Information

Volts	208-230	Volts	460	Volts
F.L. Amps	8.6	F.L. Amps	4.3	F.L. Amps
S. F Amps	None	S. F Amps		S. F Amps
RPM	1800	Hertz	60
HP	3	Duty	CONTINUOUS	TYPE	TF
KW	2.24	Model Number	C6T17FC91 F
Frame	56C	Serv. Factor	1.0	Phase	3
Max Amb	40	Design	B	Code	J
Insul Class	F	Protection	NOT	Therm.Prot.
Eff 100%	82.5	Eff 75%		PF	79
UL	Yes	CSA	Yes	Bearing OPE	6203
CC Number		CE	No	Bearing PE	6203
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	46 LB	Enclosure	TEFC	Lubrication	POLYREX EM
Nameplate	993500	Mounting	C FACE	Rotation	REV
