1/2-1/4HP LEESON 1725RPM 56H DP 1PH MOTOR 113643.00

Catalog Number:  113643.00 - FREE Ground Shipping in USA
Model Number:  C6S46DR2
Description:  1/2-1/4HP,1725/1140RPM,56H,DP,1PH,60/60HZ
Ship Weight:  33 lbs.

LEESON Single Phase Variable Torque Two-Speed Motor suited for belted or fan on shaft applications. Self ventilated and may be mounted within or outside of the driven fan's air stream.

FEATURES:

  • Made in USA
  • Durable rolled steel frame
  • 5/8" Keyed output shaft
  • Resilient base for quiet operation
  • Split phase design
  • Ball bearings
  • UL Recognized and CSA Certified



Volts 230 Volts   Volts 230
F.L. Amps 3.9 F.L. Amps   F.L. Amps 2.3
S. F Amps None S. F Amps   S. F Amps
RPM 1800 Hertz 60/60
HP 0.5 Duty CONTINUOUS TYPE SD
KW 0.37 Model # C6S46DR2E
Frame F56H Serv. Factor 1.0 Phase 1
Max Amb 40 Design NO DESIGN CODE Code N
Insul Class B Protection NOT Therm.Prot.
Eff 100%   Eff 75%   PF
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 36 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004001 Mounting RESIL Rotation SELECTIVE CCW

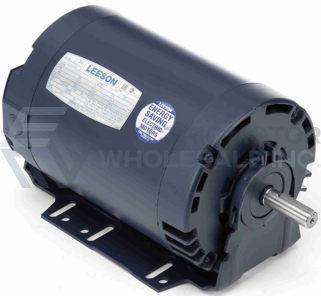

1/2-1/4HP LEESON 1725RPM 56H DP 1PH MOTOR 113643.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 113643.00
Stock # 113643
