2HP LEESON 3450RPM 56H DP 1PH MOTOR 113633.00

Catalog Number:  113633.00 Made in USA
Model Number:  U6C34DR21 E
Description:  2HP,3450RPM,56H,DP,1PH,60HZ
Ship Weight:  41 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

APPLICATIONS: Industrial quality, resilient (cradle) mounted, capacitor start-type, ball bearing motors for fan and blower service. Moderate starting torque electrical design to reduce stress on fan blades during start-up. Capacitor-type design has higher energy efficiency rating than split phase, single phase fan and blower motors. Suitable for belt-driven fans or fan-or-shaft applications. Self-ventilated design, may be mounted outside of the fan's airflow.

FEATURES:

  • Made in USA
  • 5/8" shaft output diameter
  • Drip-proof and totally enclosed designs
  • Industrial quality, resilient (cradle) mounted
  • Capacitor start-type
  • Ball bearing designs
  • Moderate starting torque to reduce machinery stresses
  • Suitable for belt-driven fans or fan-on-shaft applications
Volts 115 Volts 208-230 Volts
F.L. Amps 20 F.L. Amps 11-10 F.L. Amps
S. F Amps 23.6 S. F Amps 12.8-11.8 S. F Amps
RPM 3600 Hertz 60
HP 2 Duty CONTINUOUS TYPE CD
KW 1.492 Model # U6C34DR21E
Frame 56H Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code J
Insul Class B Protection AUTOMATIC Therm.Prot. BEJ72DV
Eff 100% 77 Eff 75%   PF 82
UL No CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 41 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004004 Mounting RESIL Rotation SELECTIVE CCW

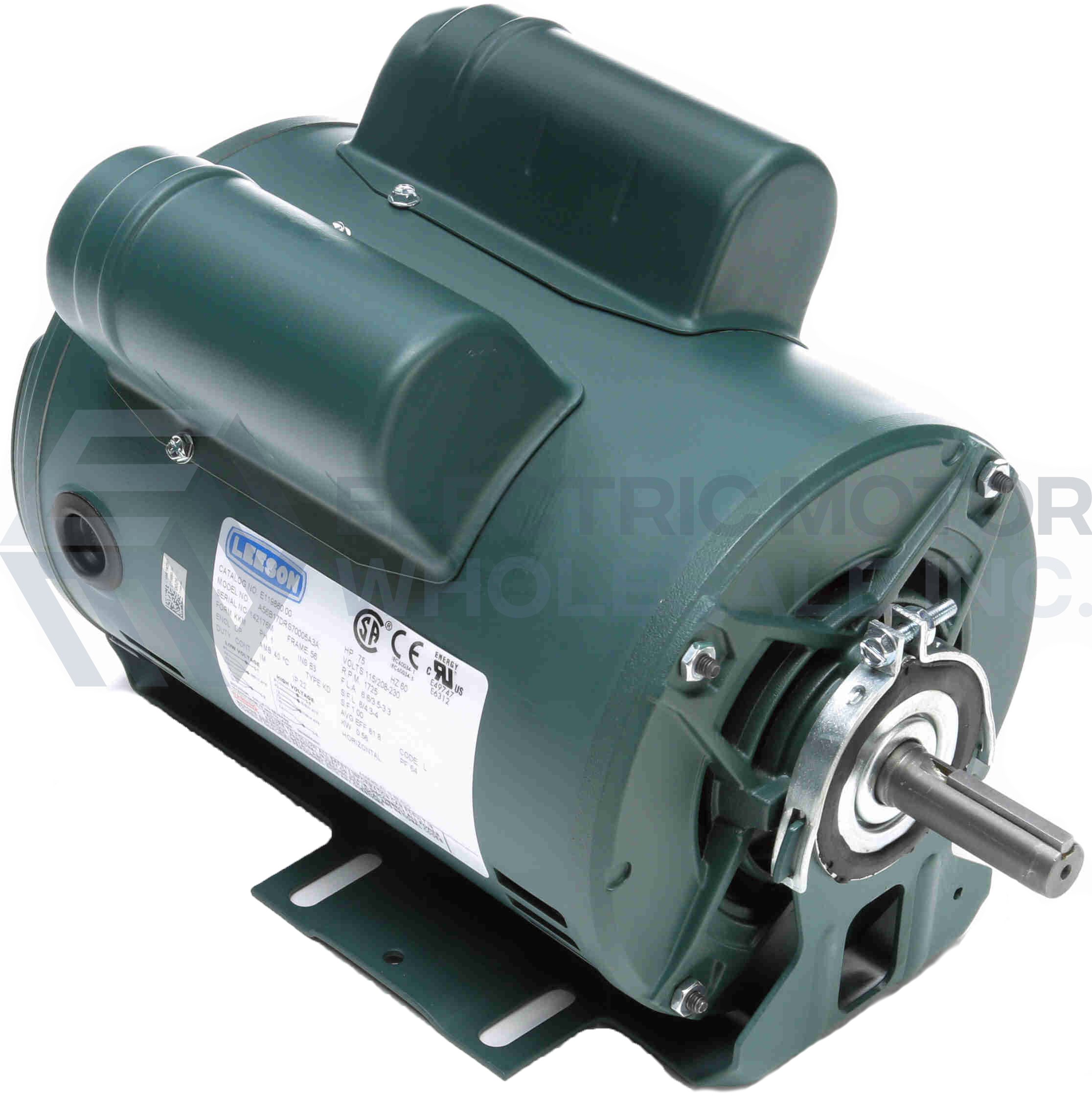

2HP LEESON 3450RPM 56H DP 1PH MOTOR 113633.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 113633.00
Stock # 113633
