2HP LEESON 1725RPM 56H DP 1PH RESILIAN BASE MOTOR 113608.00

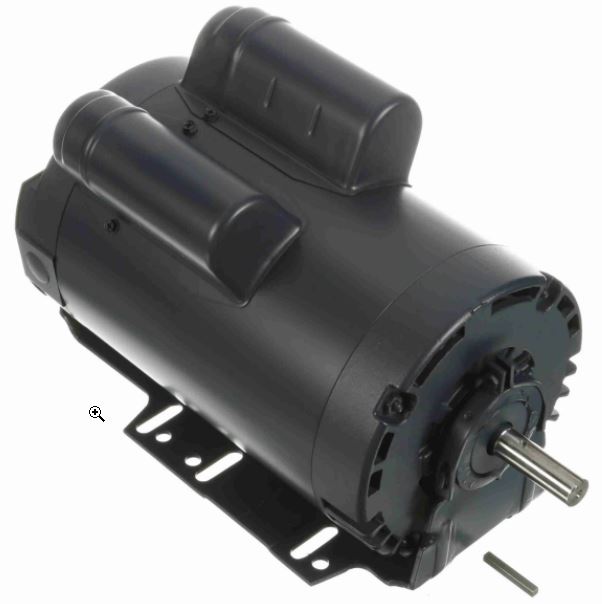

Picture is for reference only.

Part Number:

113608.00

Model/Spec Number:

A6K17DR28F

Manufacturer:

Leeson Obsolete

113608.00 LEESON 2HP Single Phase Resilient Base Motor for use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans, and belted applications.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

45 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.40.6040

UPC:

691720012222

Technical Details

Specifications

Application:	General Purpose
Output HP:	2
Output KW:	1.5
Output RPM:	1725
Frame NEMA:	56H
Mount NEMA:	Resilient Base
Enclosure NEMA:	DP
Enclosure IEC:	IP22
Voltage:	115/208-230
Frequency (Hz):	60

Documentation

Product Information Packet

Additional Information

Volts	115	Volts	208-230	Volts
F.L. Amps	18.4	F.L. Amps	9.2	F.L. Amps
S. F Amps	20.4	S. F Amps	10.2	S. F Amps
RPM	1800	Hertz	60
HP	2	Duty	CONTINUOUS	TYPE	KD
KW	1.49	Model #	A6K17DR28F
Frame	56H	Serv. Factor	1.15	Phase	1
Max Amb	40	Design	L	Code	H
Insul Class	B	Protection	AUTOMATIC	Therm.Prot.	BEJ46DV
Eff 100%	82	Eff 75%		PF	86
UL	Yes	CSA	Yes	Bearing OPE	6203
CC Number	EXEMPT	CE	No	Bearing PE	6203
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	45 LB	Enclosure	DP	Lubrication	POLYREX EM
Nameplate	004004	Mounting	RESIL	Rotation	SELECTIVE CCW
