113335.00 LEESON 2HP SINGLE PHASE GENERAL PURPOSE MOTOR U6C34DC51D

Electric Motors

Discontinued Electric Motors

Leeson Discontinued Motors

2HP LEESON 3450RPM 56C DP 115/208-230V 1PH MOTOR 113335.00

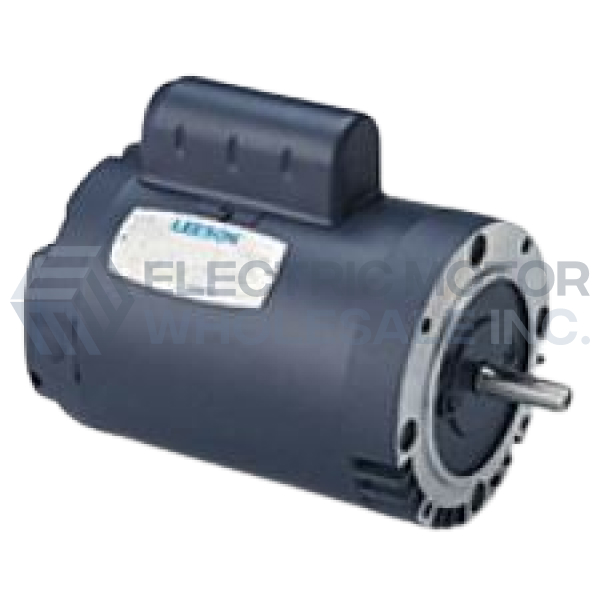

Picture is for reference only.

Part Number:

113335.00

Model/Spec Number:

U6C34DC51D

Manufacturer:

Leeson Obsolete

113335.00 LEESON 2HP Single Phase Electric Motor for use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

36 lbs

Dimensions:

13 x 20 x 13 inches

HS Code:

8501.40.0000

Technical Details

Specifications

Application:	General Purpose
Output HP:	2
Output KW:	1.5
Output RPM:	3450
Frame NEMA:	56C
Mount NEMA:	C-Face No Base
Enclosure NEMA:	DP
Enclosure IEC:	IP22
Voltage:	115/208-230
Frequency (Hz):	60

Documentation

Motor Drawing

Connection Diagram

Additional Information

Volts	115	Volts	208-230	Volts
F.L. Amps	20	F.L. Amps	11-10	F.L. Amps
S. F Amps	23.6	S. F Amps	12.8-11.8	S. F Amps
RPM	3600	Hertz	60
HP	2	Duty	CONTINUOUS	TYPE	CD
KW	1.492	Model #	U6C34DC51D
Frame	56C	Serv. Factor	1.15	Phase	1
Max Amb	40	Design	L	Code	J
Insul Class	B	Protection	AUTOMATIC	Therm.Prot.	BEJ72DV
Eff 100%	77	Eff 75%		PF	82
UL	Yes	CSA	Yes	Bearing OPE	6203
CC Number		CE	No	Bearing PE	6203
Load Type		Inverter Type	NONE	Speed Range	NONE
Motor Wt.	39 LB	Enclosure	DP	Lubrication	POLYREX EM
Nameplate	004004	Mounting	C FACE	Rotation	SELECTIVE CCW
