1.5HP LEESON 1725RPM 56H TEFC 1PH MOTOR 113333.00

Catalog Number:  113333.00 Made in USA
Model Number:  M6K17FB32G
Description:  1.5HP,1725RPM,56H,TEFC,1PH,60HZ
Ship Weight:  41 lbs.

APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:

  • Made in USA
  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • Manual Overload Protection
  • High-quality ball bearings
  • Capacitor Start/Capacitor Run
  • Easy-to-read nameplate
  • Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation
  • UL Recognized Component Listing and CSA approval
Volts 115 Volts 208-230 Volts
F.L. Amps 17.2 F.L. Amps 8.8-8.6 F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 1.5 Duty CONTINUOUS TYPE KF
KW 1.12 Model Number M6K17FB32G
Frame 56H Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code J
Insul Class B Protection MANUAL Therm.Prot. CED2705
Eff 100% 79 Eff 75%   PF 73
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 41 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW
1.5HP LEESON 1725RPM 56H TEFC 1PH MOTOR 113333.00

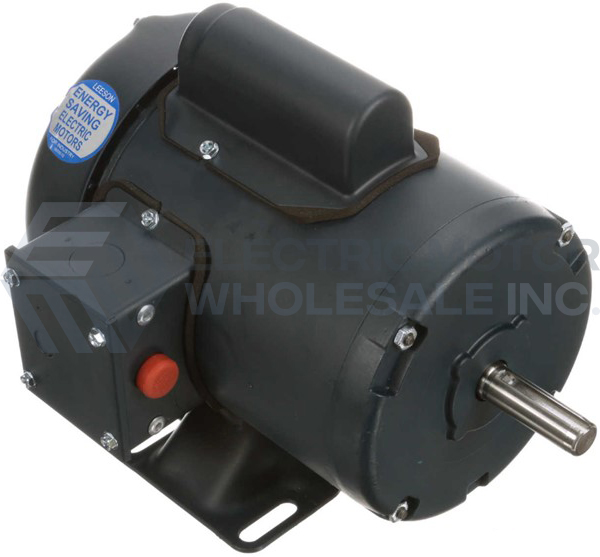

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 113333.00
Stock # 113333
Price: $338.00
Compare At: $820.00
