1.5HP LEESON 1725RPM 56YZ TEFC 1PH MOTOR 113301.00

LEESON 113301.00 has been superseded by 117884.00

Catalog Number:  113301.00
Model Number:  M6K17FZ7H
Description:  1.5HP,1725RPM,56YZ,TEFC,1PH,60HZ
Ship Weight:  46 lbs.

LEESON FEED-AUGER DRIVE MOTOR, Dust-tight, capacitor start motor with your choice of field proven electronic or protected mechanical starting switch--both eliminate damage caused when motor is over-speeded by obstructed auger. Ball-bearing, heavy duty industrial quality designs for high overload capacity. Side mounted conduit box. Flange mounts directly to drive assembly. Fully gasketed to keep out feed dust. Has screw driver slot in rear shaft. Continuous duty, with manual thermal overload protection.

FEATURES:

  • Shaft is 5/8” Dia. X 1.97” ling with 3/16” keyway
  • Mechanical centrifugal starting switch with overspeed protection, others have electronic start switch
  • Capacitor start/capacitor run design for reduced amperage
  • Manual overload protected
  • Non USA Manufactured, MX
Volts 115 Volts 230 Volts
F.L. Amps 13.4 F.L. Amps 7.2-6.7 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE KF
KW 1.12 Model Number M6K17FZ7H
Frame 56YZ Serv. Factor 1.0 Phase 1
Max Amb 40 Design NO DESIGN CODE Code H
Insul Class F Protection MANUAL Therm.Prot. CEJ38CA
Eff 100% 81.5 Eff 75%   PF 89
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 46 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting ROUND Rotation SELECTIVE CCW

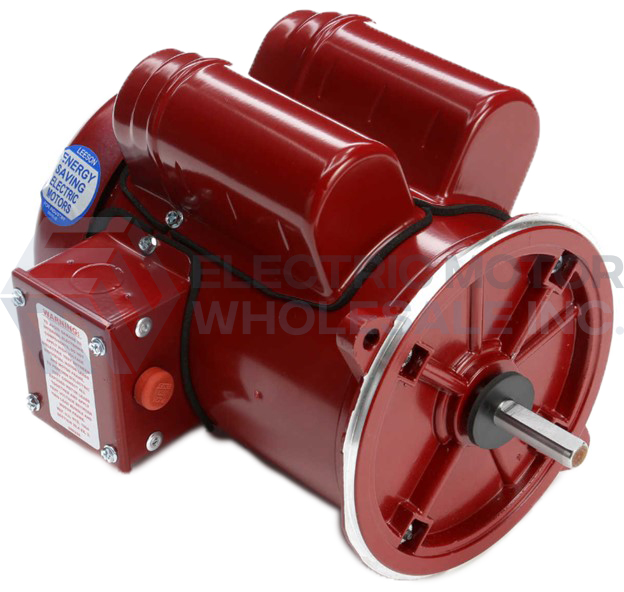

1.5HP LEESON 1725RPM 56YZ TEFC 1PH MOTOR 113301.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 113301.00
Stock # 113301
