1HP LEESON 3450RPM 56J TEFC 3PH MOTOR 113029

LEESON Catalog Number:  113029.00
Description:  1HP,3450RPM,56J,TEFC,3PH,60HZ
Ship Weight:  24 lbs.

LEESON Rugged, Totally enclosed fan cooled, three phase jet pump motors are designed for industrial service. Rigid base NEMA 56 C face mounting with threaded shaft end. Motor stator impregnated with extra heavy varnish system, High temperature copper magnet wire for high overload capacity. Grounding provision provided inside oversized gasketed conduit box. 380 alloy aluminum endplate with cast bearing seat insert. Shaft Material made of 303 stainless steel and Neoprene shaft slinger to repel moisture and other contaminants. Double-sealed ball bearing with mechanical bearing lock, shaft end, controls axial movement.

UL and CSA recognized design (UL file No. E57948)

Volts 208-230 Volts 460 Volts
F.L. Amps 3.4-3.2 F.L. Amps 1.6 F.L. Amps
S. F Amps 3.8-3.6 S. F Amps 1.8 S. F Amps
RPM 3600 Hertz 60
HP 1 Duty CONTINUOUS TYPE TF
KW 0.75 Model # C6T34FK35E
Frame 56J Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100% 77 Eff 75%   PF 80
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 23.5 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation REV

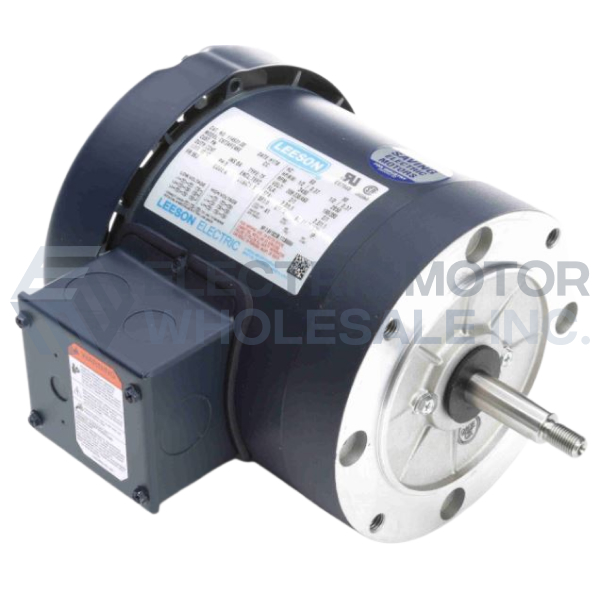

1HP LEESON 3450RPM 56J TEFC 3PH MOTOR 113029
Click Image to Enlarge
Manufacturer Part Number: 113029.00
Stock # 113029
Price: $191.00
Compare At: $628.00
Quantity:

Product Reviews

Write a review now

Quiet!
Submitted by maninmotion on
Replaced this motor with my Baldor and it is SO much quieter. Love it!
