Home > Electric Motors > Discontinued Electric Motors > LEESON Discontinued AC Motors > 2HP LEESON 1725RPM 56H TEFC 3PH MOTOR 113026.00

2HP LEESON 1725RPM 56H TEFC 3PH MOTOR 113026.00

OUT OF STOCK

LEESON 113026.00 has been superseded to 116761.00

Catalog Number:  113026.00
Model Number:  C6T17FB65 F
Description:  2HP,1725RPM,56H,TEFC,3PH,60HZ
Ship Weight:  38 lbs.
Volts 208-230 Volts 460 Volts
F.L. Amps 6.2 F.L. Amps 3.1 F.L. Amps
S. F Amps 6.8 S. F Amps 3.4 S. F Amps
RPM 1800 Hertz 60
HP 2 Duty CONTINUOUS TYPE TF
KW 1.49 Model Number C6T17FB65F
Frame 56H Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class B Protection NOT Therm.Prot.
Eff 100% 81.5 Eff 75%   PF 74
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number NONE CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 38 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation REV
2HP LEESON 1725RPM 56H TEFC 3PH MOTOR 113026.00

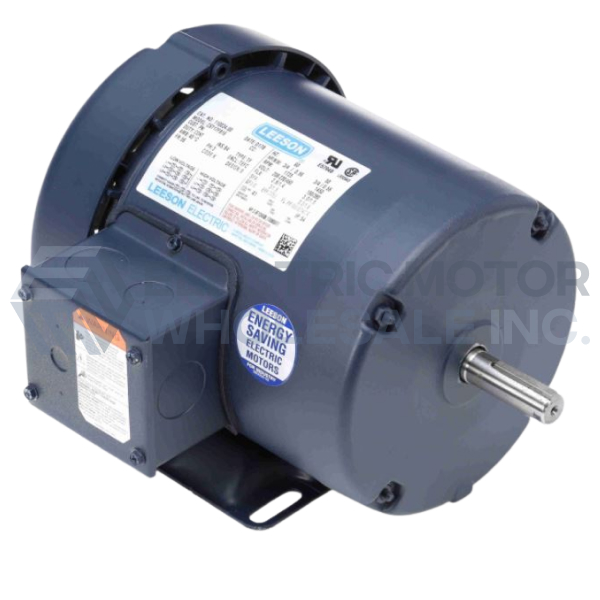

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 113026.00
Stock # 113026
