1.5HP LEESON 1725RPM 56C TENV 3PH WASHDOWN MOTOR 113021.00

1.5HP LEESON 1725RPM 56C TENV 3PH WASHDOWN MOTOR 113021.00

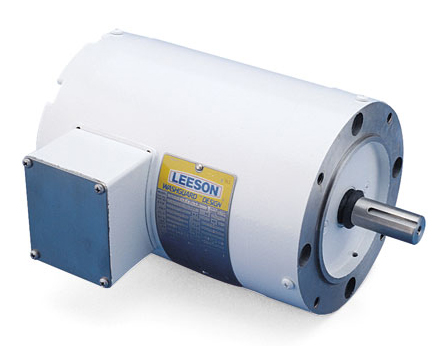

Picture is for reference only.

Part Number:

113021.00

Model/Spec Number:

C6T17VC3J

Manufacturer:

Leeson Obsolete
113021.00 LEESON 1.5HP Three Phase White Duck Washguard Epoxy Motor is designed for enhanced performance in wet, humid areas. Designed to meet the demanding washdown conditions that you may find in food processing plants, chemical processing, pharmaceutical plants, and the beverage and brewing industries.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

46 lbs

Dimensions:

13 x 18 x 13 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Washdown Epoxy

Output HP:

1.5

Output KW:

1.1

Output RPM:

1725

Frame Size NEMA:

56C

Mount NEMA:

C Face No Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP55

Voltage:

230/460

Motor Drawing REF DASH-800

Connection Diagram
