1HP LEESON 1725RPM 56C TENV 3PH WASHDOWN MOTOR 113020.00

1HP LEESON 1725RPM 56C TENV 3PH WASHDOWN MOTOR 113020.00

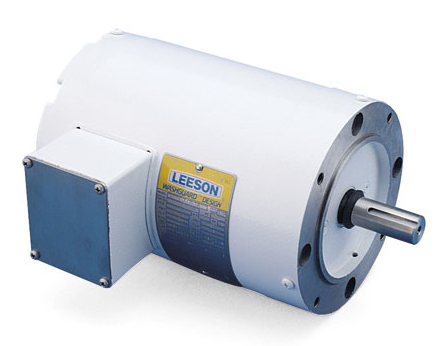

Picture is for reference only.

Part Number:

113020.00

Model/Spec Number:

C6T17VC2J

Manufacturer:

Leeson Obsolete
113020.00 LEESON 1HP Three Phase Washguard Motors are designed for superior extended service in severe environments. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

35 lbs

Dimensions:

13 x 20 x 13 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Washdown Epoxy

Output HP:

1

Output KW:

0.75

Output RPM:

1725

Frame Size NEMA:

56C

Mount NEMA:

C Face No Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP55

Voltage:

208-230/460

Motor Drawing REF DASH-650

Connection Diagram
