2HP LEESON 3450RPM 56J TEFC 3PH MOTOR 112991

Catalog Number: 112991.00
Model Number: A6T34FC33
Description:  2HP,3450RPM,56J,TEFC,3PH,60HZ
Ship Weight:  45 lbs.

APPLICATIONS: Used in agricultural duty irrigation systems.

FEATURES:

  • Made in U.S.A.
  • Steel frame
  • Totally enclosed fan cooled
  • Threaded jet pump motor shaft
  • Vertical Shaft down design
  • Rain canopy provided
  • Epoxy painted for corrosion protection
  • Neoprene shaft flinger
  • Footnotes: S,US
Volts 460 Volts   Volts
F.L. Amps 2.8 F.L. Amps   F.L. Amps
S. F Amps 3.8 S. F Amps   S. F Amps
RPM 3600 Hertz 60
HP 2 Duty CONTINUOUS TYPE TF
KW 1.49 Model # A6T34FC33
Frame 56C Serv. Factor 1.5 Phase 3
Max Amb 40 Design B Code M
Insul Class F Protection AUTOMATIC Therm.Prot. CWJ47KX
Eff 100% 84 Eff 75%   PF 80
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 42.2 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting ROUND Rotation REV
Assembly NONE Shaft Dia. 9/14 IN Ext. Diag. 005074.01
2HP LEESON 3450RPM 56J TEFC 3PH MOTOR 112991

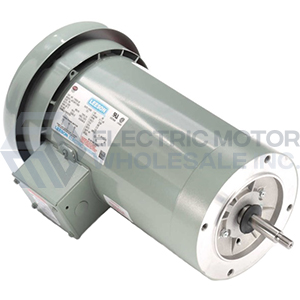

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 112991.00
Stock # 112991
Price: $358.00
Compare At: $876.00
