1.5HP LEESON 1740RPM 56C TEFC 3PH MOTOR 112643

LEESON 112643.00 has been superseded by 119480.00

Catalog Number:  112643.00
Model Number: C6T17WK11
Description:  1.5HP,1740RPM,56C,TEFC,3PH,60HZ,WASHGUARD
Ship Weight: 33 lbs.
Volts 208-230 Volts 460 Volts
F.L. Amps 4.6-5 F.L. Amps 2.5 F.L. Amps
S. F Amps 5.4 S. F Amps 2.7 S. F Amps
RPM 1800 Hertz 60
HP 1.5 Duty CONTINUOUS TYPE TF
KW 1.12 Model # C6T17WK11 J
Frame 56C Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 78.5 Eff 75%   PF 72
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 33 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 080904 Mounting RIGID C Rotation REV
1.5HP LEESON 1740RPM 56C TEFC 3PH MOTOR 112643

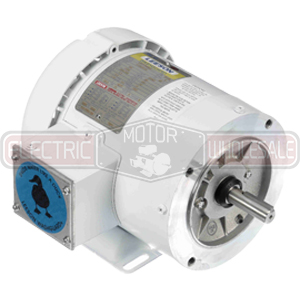

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 112643.00
Stock # 112643
