1/2HP LEESON 1800RPM 56 TEFC 3PH MOTOR 112427.00

Catalog Number: 112427.00 - FREE Ground Shipping in USA
Model Number: C6T17WB6
Description:  1/2HP,1800RPM,56,TEFC,3PH,60HZ,EPOXY WASHGUARD
Ship Weight:  24 lbs.

LEESON Three Phase White Duck Washguard Epoxy Motor is designed for enhanced performance in wet, humid areas. Designed to meet the demanding washdown conditions that you may find in food processing plants, chemical processing, pharmaceutical plants, and the beverage and brewing industries.

  • Made in the USA
  • The original moisture-shedding "duck" motor
  • Durable rolled steel frame with USDA-approved, high-gloss, white epoxy finish
  • 5/8" Keyed output shaft
  • 303 stainless-steel shaft and lubricated, spring-loaded, moisture-resistant shaft system includes contact seals in each endshield. Patented V-ring Forsheda seal on shaft end to deflect water.
  • Frame, base, endshields, rotor, and interior components are protected by enamel and polyester compounds of outstanding resistance to moisture, acids, alkalies, and oils.
  • High temperature, moisture resistant IRIS® insulation system assures long life on inverter service. Windings are immersed and cured in polyester insulating compound.
  • Cast, oversized conduit box with tough, high-temperature nitrile gaskets and stainless-steel cover and hardware. Oversized design with threaded entrance. All machined fits are sealed and nylon gaskets are used under bolt heads.
  • Excellent for applications requiring a motor that is "tropicalized"
  • Double-sealed, oversized bearings lubricated with Exxon POLYREX® EM high temperature, moisture-resistant lubricant. Bearing cavities packed to further retard entrance of moisture
  • Stainless-steel or white polypropylene fan guard on all Washguard frames.
  • Stainless-steel, “full-fact” nameplate includes information on motor efficiency and connections. Readable even after repeated washdowns.
  • Four condensate drains in each endshield (at three, six, nine, and twelve o’clock) purge condensate and water
  • Meets IP55 enclosure protection




Volts 208-230 Volts 460 Volts
F.L. Amps 1.9-2 F.L. Amps 1 F.L. Amps
S. F Amps 2.2 S. F Amps 1.1 S. F Amps
RPM 1800 Hertz 60
HP 1/2 Duty CONTINUOUS TYPE TF
KW 0.37 Model # C6T17WB6G
Frame 56C Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 74 Eff 75%   PF 63
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 25 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 080904 Mounting RIGID C Rotation REV

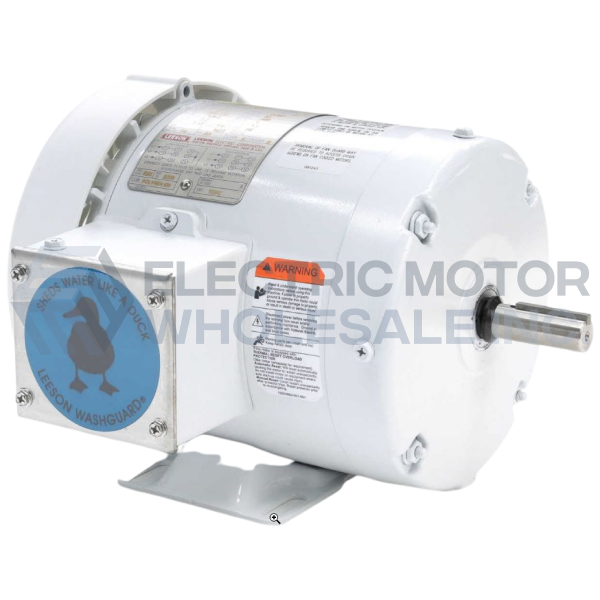

1/2HP LEESON 1800RPM 56 TEFC 3PH MOTOR 112427.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 112427.00
Stock # 112427
Price: $300.00
Compare At: $797.00
