1HP LEESON 1140RPM 56C TEFC 3PH MOTOR 112379.00

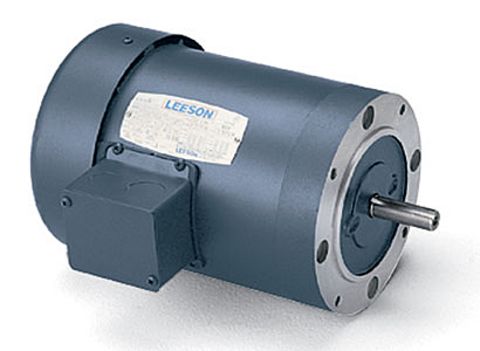

Picture is for reference only.

Part Number:

112379.00

Model/Spec Number:

C6T11FC11F

Manufacturer:

Leeson Obsolete

112379.00 LEESON 1HP Three Phase Electric Motor is designed for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

35 lbs

Dimensions:

13 x 20 x 13 inches

HS Code:

8501.32.2000

Technical Details

Specifications

Brand:	Leeson
Application:	General Purpose
Output HP:	1
Output KW:	0.75
Output RPM:	1140
Frame Size NEMA:	56C
Mount NEMA:	C Face No Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP43
Voltage:	208-230/460

Documentation

Motor Drawing REF DASH-650

Connection Diagram

Additional Information

Volts	208-230	Volts	460	Volts
F.L. Amps	4	F.L. Amps	2	F.L. Amps
S. F Amps	4.2	S. F Amps	2.1	S. F Amps
RPM	1200	Hertz	60
HP	1	Duty	CONTINUOUS	TYPE	TF
KW	.75	Model Number	C6T11FC11 F
Frame	56 C	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	J
Insul Class	B	Protection	NOT	Therm.Prot.
Eff 100%	77	Eff 75%		PF	61
UL	Y-(LEESON UL REC)	CSA	Yes	Bearing OPE	6203
CC Number	EXEMPT	CE	No	Bearing PE	6203
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	33 LB	Enclosure	TEFC	Lubrication	POLYREX EM
Nameplate	993500	Mounting	C FACE	Rotation	REV
