1.5HP LEESON 1800RPM 56C EPFC 3PH MOTOR 111941.00

LEESON 111941.00 has been Superseded by 119427.00

Catalog Number:  111941.00
Model Number:  A6T17XC24
Description:  1.5HP,1800RPM,56C,EPFC,3PH,EXPLOSION PROOF
Ship Weight:  46 lbs.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 4.5-4.4 F.L. Amps 2.2 F.L. Amps 3.6/1.8
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60/50
HP 1 1/2 Duty CONTINUOUS TYPE TX
KW 1.12 Model # A6T17XC24G
Frame 56C Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code M
Insul Class B Protection AUTOMATIC Therm.Prot. MWJ41KX
Eff 100% 84 Eff 75%   PF 76
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 49 LB Enclosure EPFC Lubrication POLYREX EM
Nameplate 080052 Mounting ROUND Rotation REV

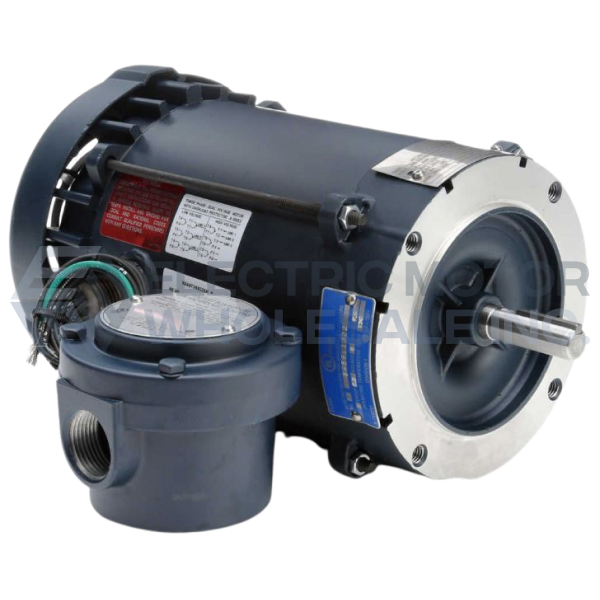

1.5HP LEESON 1800RPM 56C EPFC 3PH MOTOR 111941.00
Click Image to Enlarge
Manufacturer Part Number: 111941.00
Stock # 111941
