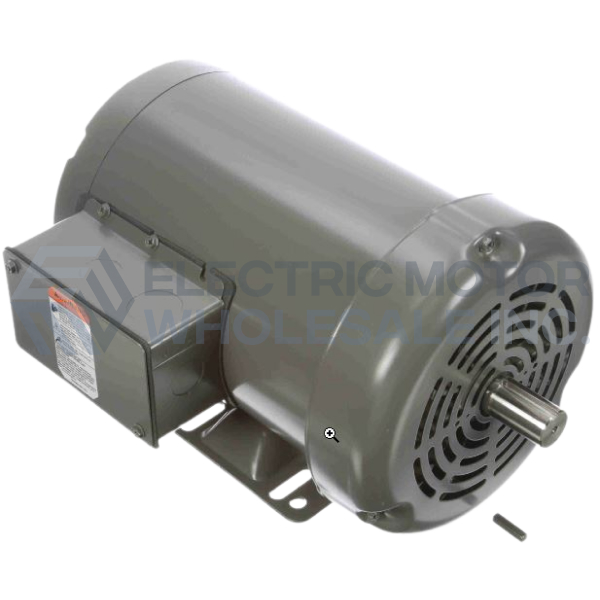

1.5HP LEESON 1725RPM 56HZ TEFC 3PH GRAIN STIRRING MOTOR 111329.00

1.5HP LEESON 1725RPM 56HZ TEFC 3PH GRAIN STIRRING MOTOR 111329.00


Part Number:

111329.00

Model/Spec Number:

M6T17FB49

Manufacturer:

Leeson Obsolete
111329.00 LEESON 1.5HP Three Phase Grain Stirring motor is used in Grain stirring systems inside grain bins.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

41 lbs

Dimensions:

12 x 18 x 12 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Farm Duty

Output HP:

1.5

Output KW:

1.1

Output RPM:

1725

Frame Size NEMA:

56HZ

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230/460

Connection Diagram

Volts 208-230 Volts 460 Volts
F.L. Amps 5.4 F.L. Amps 2.7 F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE TF
KW 1.12 Model # M6T17FB49
Frame F56HZ Serv. Factor 1.0 Phase 3
Max Amb 40 Design C Code M
Insul Class B Protection MANUAL Therm.Prot. CWJ54KF
Eff 100% 80 Eff 75%   PF 62
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 41 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 004001 Mounting RIGID Rotation REV
Assembly   Shaft Dia. 7/8 IN Ext. Diag. 005020.02
