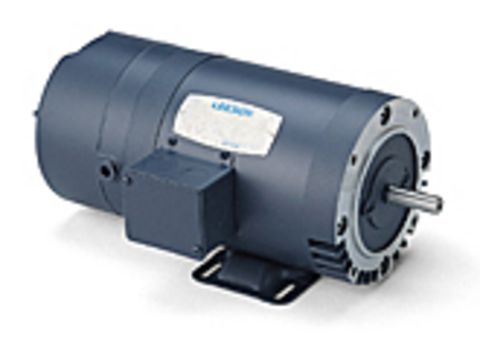

1/2HP LEESON 1725RPM 56C DP 3PH BRAKE MOTOR 111326
|LEESON Catalog Number:||111326.00|
|Ship Weight:||29 lbs.|
This Leeson Motor is a Build To Order product and factory lead times are approximately 3-6 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.
LEESON Fail-safe positive, stop and hold brakemotors. Brakes are spring set. Load stopped automatically when power is turned off. LEESON brakemotors feature a power off manual release for convenience, and for use in case of a power failure. The manual release resets automatically. The standard brake is manufactured by Stearns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off, or to be actuated independent of power to the motor.
|F.L. Amps||2||F.L. Amps||1||F.L. Amps|
|S. F Amps||2.2||S. F Amps||1.1||S. F Amps|
|Eff 100%||74||Eff 75%||PF||63|
|CC Number||CE||No||Bearing PE||6203|
|Load Type||Inverter Type||NONE||Speed Range||NONE|
|Motor Wt.||29 LB||Enclosure||DP||Lubrication||POLYREX EM|
