1HP LEESON 1140RPM 56Y DP 3PH MOTOR 111147.00

Catalog Number:  111147.00 - FREE Ground Shipping In Continental USA
Model Number:  A6T11DZ1D
Description:  1HP,1140RPM,56Y,DP,3PH,60HZ,HVAC
Ship Weight:  40 lbs.

APPLICATIONS: Designed for operating vertical shaft-up on condenser fan, air over applications. Enclosed endshield on shaft-end prevents contaminants from entering motor when mounted vertical shaft-up. Designed for belly band mount with three support screws located at 120* increments in motor frame. Shaft flingers located both internally and externally.


  • Belly Band Mount
  • Do Not use with AC Inverters
  • Double sealed ball bearings with Exxon POLYREX EM grease having operating temperature range of -20* to +350*F and special formulation to provide extra long life and moisture resistance
  • Phosphatized shaft for corrosion resistance
  • Gasketed conduit box
  • Ground screw accommodations
  • 1.15 Service Factor
  • Automatic overload protector also guards against primary single phasing-- UL component recognized (File E57955)
Volts 208-230 Volts 460 Volts
F.L. Amps 4 F.L. Amps 2 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1200 Hertz 60
KW .746 Model # A6T11DZ1D
Frame 56Y Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class B Protection AUTOMATIC Therm.Prot. MWJ64KR
Eff 100% 77 Eff 75%   PF 61
UL Yes CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 40 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004001 Mounting RIGID Rotation REV
1HP LEESON 1140RPM 56Y DP 3PH MOTOR 111147.00

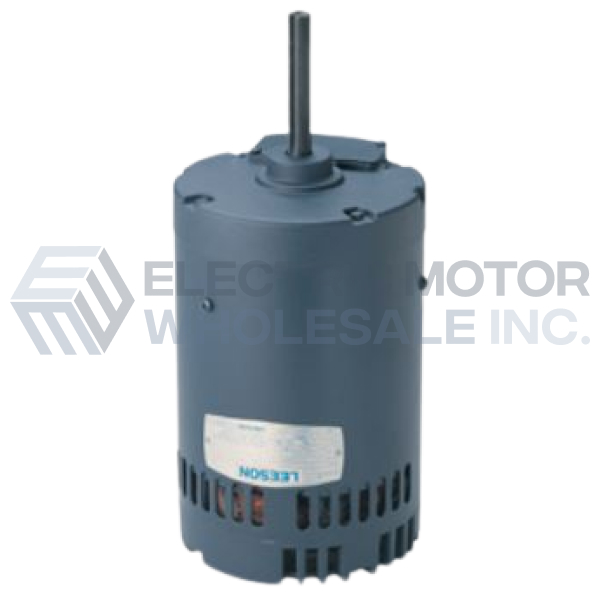

Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 111147.00
Stock # 111147
Price: $417.00
Compare At: $987.00
