1HP LEESON 1725RPM 56C TEFC 3PH MOTOR 110912.00
1HP LEESON 1725RPM 56C TEFC 3PH MOTOR 110912.00

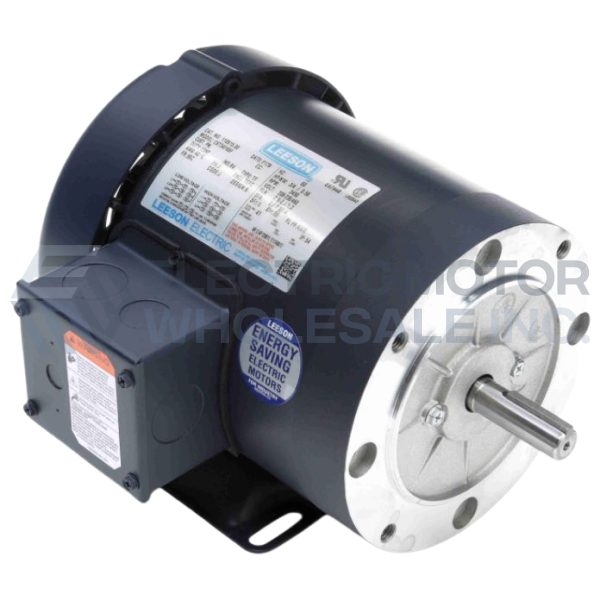

Picture is for reference only.
Part Number:
110912.00Model/Spec Number:
C6T17FK6GManufacturer:
Leeson ObsoleteThis product has been discontinued with no direct replacement from the manufacturer. The functional equivalent should be reviewed for application compatibility.
Click below to view suggested functional replacement.
Shipping Details
Weight:
30 lbsDimensions:
12 x 18 x 12 inchesHS Code:
8501.52.8040Technical Details
Specifications
Brand: | Leeson |
Application: | General Purpose |
Output HP: | 1 |
Output KW: | 0.75 |
Output RPM: | 1725 |
Frame Size NEMA: | 56C |
Mount NEMA: | C Face With Base |
Enclosure NEMA: | TEFC |
Voltage: | 208-230/460 |
Frequency (Hz): | 60 |
Documentation
Additional Information
| Volts | 208-230 | Volts | 460 | Volts | |
| F.L. Amps | 3.6-3.8 | F.L. Amps | 1.9 | F.L. Amps | |
| S. F Amps | 4.2 | S. F Amps | 2.1 | S. F Amps | |
| RPM | 1800 | Hertz | 60 | ||
| HP | 1 | Duty | CONTINUOUS | TYPE | TF |
| KW | .75 | Model Number | C6T17FK6 G | ||
| Frame | 56 C | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | M |
| Insul Class | B | Protection | NOT | Therm.Prot. | |
| Eff 100% | 77 | Eff 75% | PF | 64 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6203 |
| CC Number | EXEMPT | CE | No | Bearing PE | 6203 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 27 LB | Enclosure | TEFC | Lubrication | POLYREX EM |
| Nameplate | 993500 | Mounting | RIGID C | Rotation | REV |
