3/4HP LEESON 1725RPM 56C TEFC 1PH MOTOR 110905.00

Catalog Number:  110905.00
Model Number:  C6C17FK4K
Description:  3/4HP,1725RPM,56C,TEFC,1PH,60HZ
Ship Weight:  29 lbs.

APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for continuous outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:

  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • High-quality ball bearings
  • Capacitor start
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • Non USA Manufactured, MX
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 10.8 F.L. Amps 5.4 F.L. Amps
S. F Amps 11.4 S. F Amps 5.7 S. F Amps
RPM 1800 Hertz 60
HP 3/4 Duty CONTINUOUS TYPE CF
KW 0.56 Model Number C6C17FK4 K
Frame 56 C Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code L
Insul Class B Protection NOT Therm.Prot.
Eff 100% 70 Eff 75%   PF 64
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 29 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID C Rotation SELECTIVE CCW
3/4HP LEESON 1725RPM 56C TEFC 1PH MOTOR 110905.00

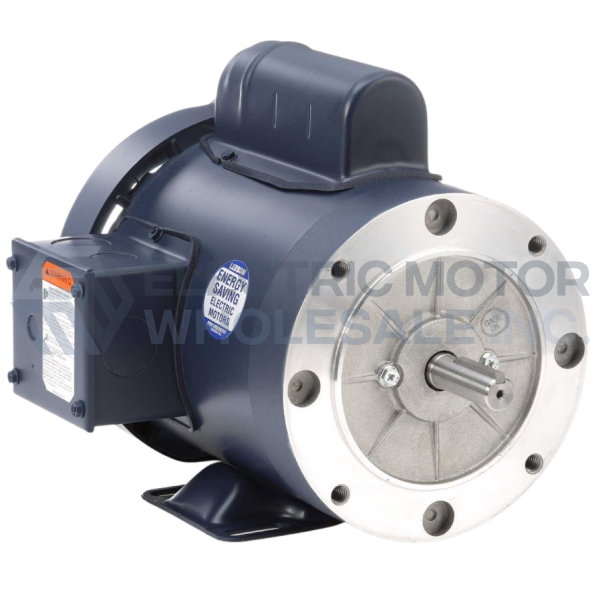

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 110905.00
Stock # 110905
Price: $268.00
Compare At: $648.00
