1.5HP LEESON 1725RPM 56C TEFC 1PH HI-TORQUE MOTOR 110495.00

Catalog Number:  110495.00 - FREE Ground Shipping in Continental USA
Model Number:  M6K17FC3L
Description:  1.5HP,1725RPM,56C,TEFC,HI-TORQUE,1PH,60HZ
Motor Type:  Capacitor Start Induction Run
Ship Weight:  40 lbs.

APPLICATIONS: Designed specifically for severe "farm duty" environments and applications, but also work well in standard environments such as air compressors, pumps and other single phase machinery.

Mechanical Features:

  • Made in USA
  • Steel frame
  • 5/8" shaft output diameter
  • Gasketed capacitor housing and conduit boxes provide protection in all environments.
  • Double sealed ball bearings pre-lubricated with Exxon POLYREX EM grease having operating temperature range of -20*F to +350*F and special formulation to provide extra bearing protection.
  • Rubber boot over manual protector reset button provides weather protection.

Electrical Features:

  • Low temperature manual overload protector protects against extreme overload.
  • Class "F" copper windings and varnish.
  • Capacitor start provides high starting torque with normal starting current.

110495.00 LEESON

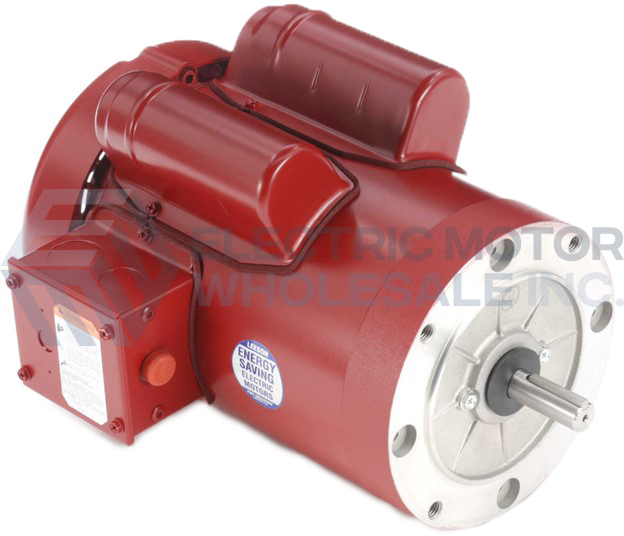

1.5HP LEESON 1725RPM 56C TEFC 1PH HI-TORQUE MOTOR 110495.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 110495.00
Stock # 110495.00
Price: $337.00
Compare At: $1,298.00
