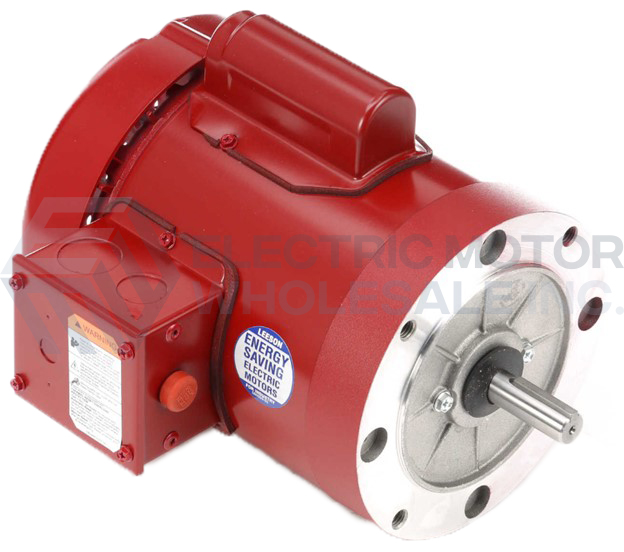

3/4HP LEESON 1725RPM 56C TEFC 1PH HI-TORQUE MOTOR 110493.00

APPLICATION: Designed specifically for severe "farm duty" environments and applications, but work excellently in standard environments such as Air compressors, pumps and other single phase machinery.

Mechanical Features:

• Made in USA
• Steel frame
• 5/8" shaft output diameter
• Gasketed capacitor housing and conduit boxes provide protection in all environments.
• Double sealed ball bearings pre-lubricated with Exxon POLYREX EM grease having operating temperature range of -20*F to +350*F and special formulation to provide extra bearing protection.
• Rubber boot over manual protector reset button provides weather protection.

Electrical Features:

• Low temperature manual overload protector protects against extreme overload.
• Class "F" copper windings and varnish.
• Capacitor start provides high starting torque with normal starting current.
