110415.00 LEESON 1HP Single Phase General Purpose Motor M6C34FC9, M6C34FC9H

Electric Motors

Single Phase Electric Motors

LEESON Motors Single Phase

LEESON Single Phase TEFC Motors

LEESON Single Phase TEFC C-Face Motors

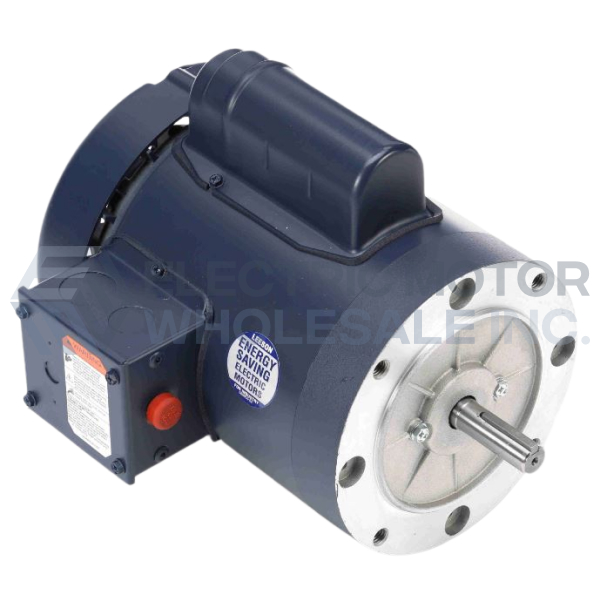

1HP LEESON 3450RPM 56C TEFC 115/208-230V 1PH MOTOR 110415.00

Part Number:

110415.00

Model/Spec Number:

M6C34FC9

Manufacturer:

Regal Rexnord Commercial

110415.00 LEESON 1HP Single Phase Electric Motor for use where water, dust and dirt exposure exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications.

MSRP: $1,128.00

Regular Price

USD

470

QTY

Shipping Details

Weight:

33 lbs

Dimensions:

10 x 22 x 10 inches

HS Code:

8501.40.6040

UPC:

691720008744

Technical Details

Specifications

Application:	General Purpose
Output HP:	1
Output KW:	0.75
Output RPM:	3450
Frame NEMA:	56C
Mount NEMA:	C-Face No Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP54
Voltage:	115/208-230
Frequency (Hz):	60

Documentation

Product Information Packet

Additional Information

LEESON Single Phase TEFC General Purpose Motor for use where exposure water, dust and dirt exists. Ideally, suited for use on pumps, compressors, fans, conveyors, and other industrial equipment. Not for continuous outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:
