1HP LEESON 1425RPM 56H IP22 1PH MOTOR 110397.00

Catalog Number:  110397.00 - FREE Ground Shipping in USA
Model Number:  C6C14DB8 G
Description:  1HP,1425RPM,56H,IP22,1PH,50HZ
Ship Weight:  35 lbs.

LEESON Single Phase 50HZ Motor produces full rated HP on 50Hz power supply. For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features Include:

  • Made in USA
  • Durable rolled steel frame
  • 5/8" Keyed output shaft
  • Combination 56H base has mounting holes for NEMA 56 and NEMA 143-5T
  • High torque exceeds NEMA performance standards
  • Capacitor start motor with centrifugal switch designed for 50Hz service
  • Shielded ball bearings
  • UL Recognized and CSA Certified
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 110 Volts 220 Volts
F.L. Amps 12.8 F.L. Amps 6.4 F.L. Amps
S. F Amps 13.6 S. F Amps 6.8 S. F Amps
RPM 1500 Hertz 50
HP 1 Duty CONTINUOUS TYPE CD
KW 0.75 Model Number C6C14DB8G
Frame G56H Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100% 73 Eff 75%   PF 71
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE Yes Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 38 LB Enclosure IP22 Lubrication POLYREX EM
Nameplate 080671 Mounting RIGID Rotation SELECTIVE CCW

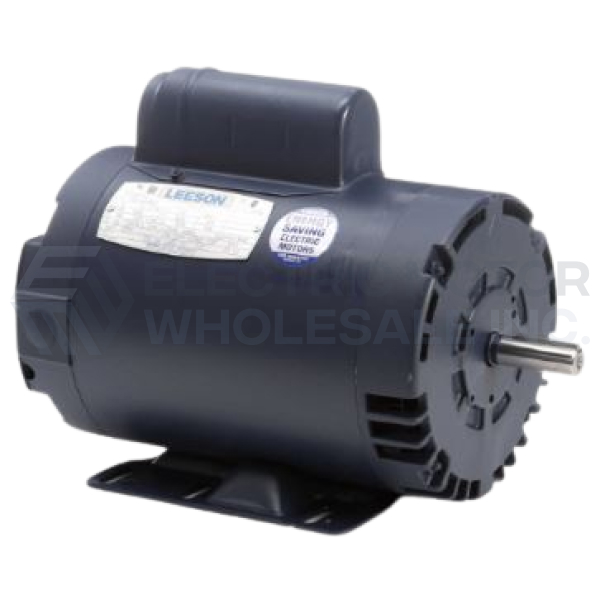

1HP LEESON 1425RPM 56H IP22 1PH MOTOR 110397.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 110397.00
Stock # 110397
